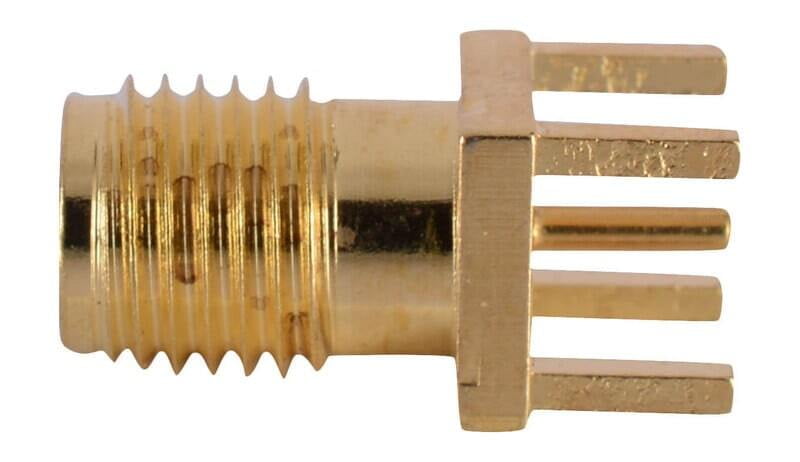

SMA Connector Female-Straight-CO-798-D
Non-returnable
₹25.00
SPQ:,MOQ:,Product Package:
SPQ
0 MOQ
0 Visible Manufacture Name
Microadapt Weight (gm)
0.003Stock Available
11673 Choose Quantity
Product Details
This is a SMA straight connector, highly suitable for prototyping with the cellular devices and GPS that needs an antenna connection. The female signal pin present in this connector correctly mate with the original SMA type antenna and ensures reliable functioning.
Get the high-quality SMA Connector Female-Straight at the best price in India.
SMA Connector Female-Straight Features:-
- SMA Connector, Female, Straight ,PCB Connector, Plate Edge Mount, Copper, Gold Plating
- Excellent electrical performance up to 18GHz with low reflection
- Thread type coupling mechanism ensure small loss and high security in compact design
SMA Connector Female-Straight Specifications:-
- Impedance:50 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
- 750 V rms min. for RG316, RG402
- 500v rms min. for RG178
- Working Voltage: 500 V rms max. for RG142, RG405
- 375 V rms max. for RG316, RG402
- 170 V rms max. for RG178
- Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
- Insultation Resistance ≧ 5 x 10³ mΩ (Meg ohms min.)
To know more about all latest Products of SMA Connectors you can visit at www.campuscomponent.com
