SMA Connector Straight (20mm)-CO-297-D
Non-returnable
SPQ:1,MOQ:1,Product Package:
₹45.00
SPQ
1 MOQ
1 Visible Manufacture Name
Microadapt Visible Manufacturer’s code
Microadapt Weight (gm)
0.005 Brand/MFR No
Microadapt-Microadapt Choose Quantity
Product Details

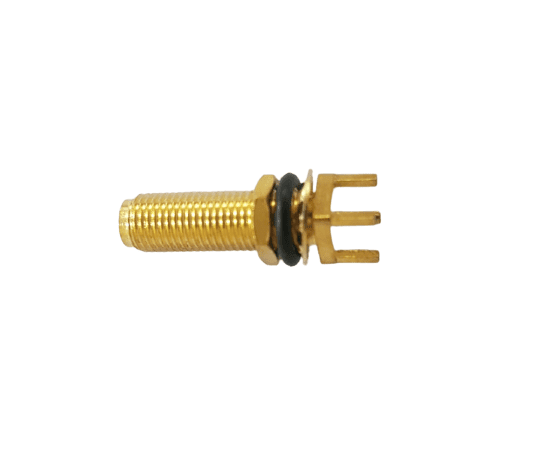

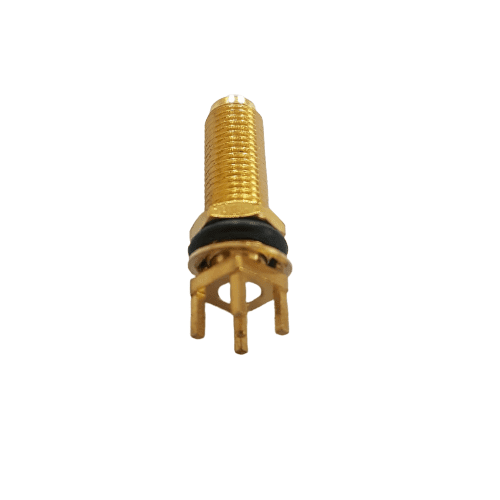

This is a SMA straight connector, highly suitable for prototyping with the cellular devices and GPS that needs an antenna connection. The male signal pin present in this connector correctly mate with the original SMA type antenna and ensures reliable functioning.
Get the high-quality SMA Connector Female-Straight at the best price in India.
SMA Connector Female-Straight Specifications:-
- Impedance：50 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
- 750 V rms min. for RG316, RG402
- 500v rms min. for RG178
- Working Voltage: 500 V rms max. for RG142, RG405
- 375 V rms max. for RG316, RG402
- 170 V rms max. for RG178
