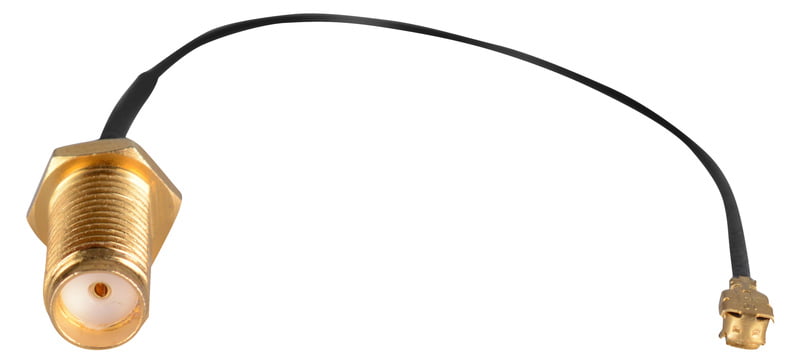

Rf Cable (Black) 20cm Antenna-AN-99-D
Non-returnable
₹70.00
Product Details
RF Cable (Black) 20cm Antenna Features:-
- Impedance: 50ohm
- Temperature Range : -40 to +90degree C
- VSWR(1): 1.2 max. (DC to 3GHz)
- VSWR(2) : 1.3 max. (3 to 6GHz)
- Suitable Connector Cable: MM9329-2700
- Outer Diameter: 0.8mm
- Minimum Bending Ratio: 3.3mm
- Center Contact: Copper Alloy
- Rated Voltage: 250V
- Contact Resistance (max. ): 0.015ohm
- Withstanding Voltage : 300RMS (AC)
- Insulation Resistance (min. ): 500M ohm
- Durability: 100cycles
- Engage Force v (max. ) : 29.4N
- Disengage Force (min. ): 2.9N
- Disengage Force (max. ) : 19.6N
- Frequency Rating : to 6.0 GHz
Get the high-quality RF Cable (Black) 20cm Antenna at the best price in India.
Attachment:-
Rf Cable (Black) 20cm Antenna datasheet
