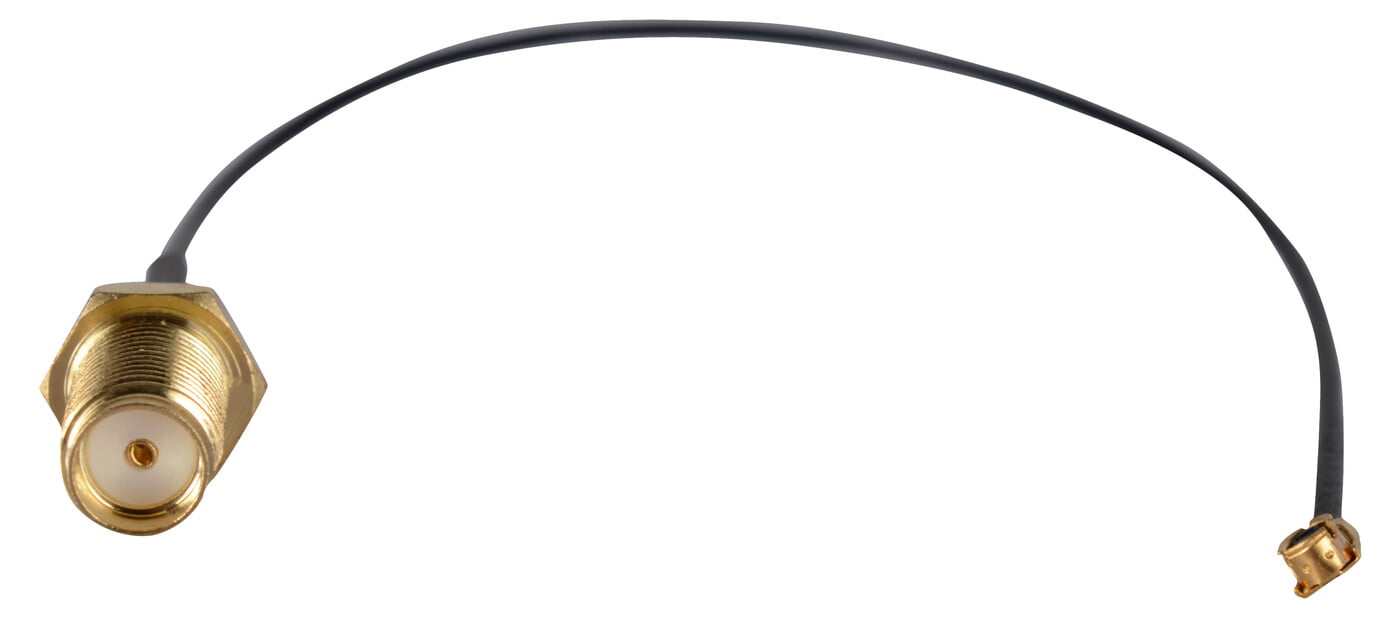

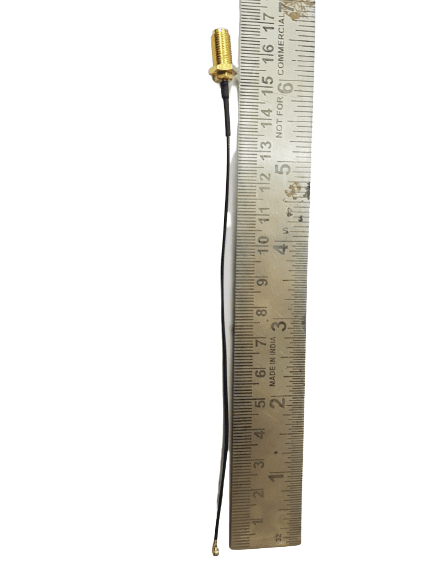

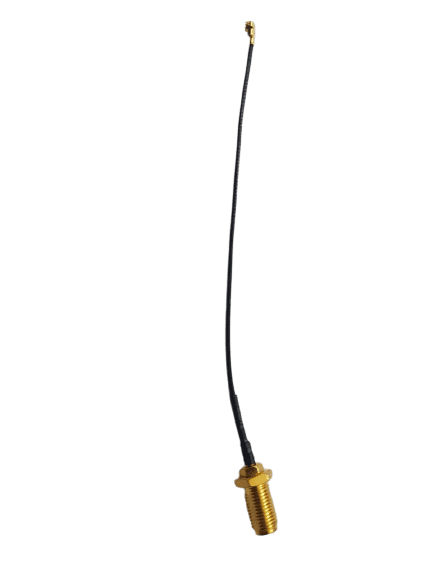

Rf Cable (Black) 15cm Antenna-AN-98-D
Non-returnable
₹55.00
Product Details
RF Cable (Black) 15cm Antenna Features:-
Impedance: 50ohm
Temperature Range : -40 to +90degree C
VSWR(1): 1.2 max. (DC to 3GHz)
VSWR(2) : 1.3 max. (3 to 6GHz)
Suitable Connector Cable: MM9329-2700
Outer Diameter: 0.8mm
Minimum Bending Ratio: 3.3mm
Center Contact: Copper Alloy
Rated Voltage: 250V
Contact Resistance (max. ): 0.015ohm
Withstanding Voltage : 300RMS (AC)
Insulation Resistance (min. ): 500M ohm
Durability: 100cycles
Engage Force v (max. ) : 29.4N
Disengage Force (min. ): 2.9N
Disengage Force (max. ) : 19.6N
Frequency Rating : to 6.0 GHz
To know more about all latest Products of RF Cable Antenna you can visit at www.campuscomponent.com
Attachment:-
Rf Cable (Black) 15cm Antenna datasheet
