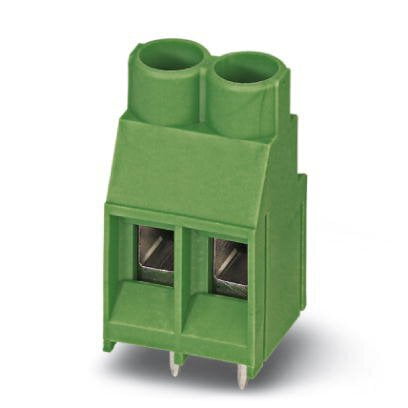

PCB terminal block - MKDS 5/ 2-6,35 - TB-2522-D

Phoenix Contact-1714955 -PCB terminal block - MKDS 5/ 2-6,35 - TB-2522-D

₹70.00
SPQ
50
MOQ
10
Visible Manufacture Name
Phoenix Contact
Visible Manufacturer’s code
MKDS 5/ 2-6,35 - 1714955
Weight (gm)
0.006
Brand/MFR No
Phoenix Contact/MKDS 5/ 2-6,35 - 1714955
Quantity
Add to Cart
Product Details
PCB terminal block, nominal current: 32 A, rated voltage (III/2): 630 V, nominal cross section: 4 mm2, number of potentials: 2, Number of rows: 1, Number of positions per row: 2, product range: MKDS 5, pitch: 6.35 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: green, Pin layout: Linear pinning, Solder pin [P]: 5.1 mm, type of packaging: packed in cardboard. The article can be aligned to create different nos. of positions.


Get the high-quality PCB terminal block - MKDS 5/ 2-6,35 at the best price in India.


PCB terminal block - MKDS 5/ 2-6,35 Product Properties:-

TypePC terminal block can be aligned
Number of positions2
Number of connections2
Number of rows1
Number of potentials2
Pin layoutLinear pinning


PCB terminal block - MKDS 5/ 2-6,35 Electrical Properties:-

Maximum load current32 A
Rated voltage (II/2)1000 V
Rated voltage (III/2)630 V
Rated surge voltage (II/2)6 kV
Rated surge voltage (III/2)6 kV
Rated surge voltage (III/3)6 kV
Nominal voltage UN500 V
Nominal current IN32 A
Nominal current IN32 A


To know more about all latest Products of PCB Terminal Blocks you can visit at  www.campuscomponent.com
