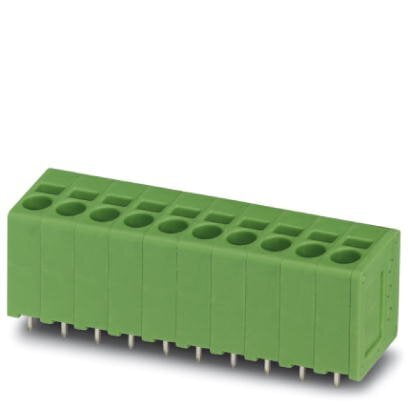

Phoenix Contact PCB terminal block - SPT 2,5/ 3-V-5,0 - TB-2524-D
Out of stock
₹120.00
SPQ
50 MOQ
10 Visible Manufacture Name
Phoenix Contact Visible Manufacturer’s code
SPT 2,5/ 3-V-5,0-1161105 Weight (gm)
0.004 Brand/MFR No
Phoenix Contact/SPT 2,5/ 3-V-5,0-1161105 Product Details
PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm2, number of potentials: 3, Number of rows: 1, Number of positions per row: 3, product range: SPT 2,5/..-V, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 90°, color: green, Pin layout: Linear double pinning, Solder pin [P]: 2.5 mm, type of packaging: packed in cardboard.
Get the high-quality PCB terminal block - SPT 2,5/ 3-V-5,0 at the best price in India.
PCB terminal block - SPT 2,5/ 3-V-5,0 Product Properties:-
| Number of positions | 3 |
| Number of connections | 3 |
| Number of rows | 1 |
| Number of potentials | 3 |
| Pin layout | Linear double pinning |
PCB terminal block - SPT 2,5/ 3-V-5,0 Electrical Properties:-
| Maximum load current | 24 A |
| Rated voltage (II/2) | 630 V |
| Rated voltage (III/2) | 400 V |
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Nominal voltage UN | 250 V |
| Nominal current IN | 24 A |
| Nominal current IN | 24 A |
To know more about all latest PCB Terminal Blocks you can visit at www.campuscomponent.com
