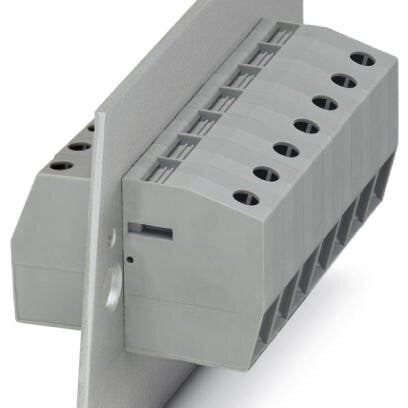

Panel feed-through terminal block - HDFK 25 - TB-2527-D
₹420.00
Out of stock
Product Details
Panel feed-through terminal block, connection method: Screw connection with tension sleeve, Screw connection with tension sleeve, number of positions: 1, load current: 101 A, cross section: 6 mm2 - 35 mm2, connection direction of the conductor to plug-in direction: 0°, width: 15.1 mm, color: gray.
Get the high-quality Panel feed-through terminal block - HDFK 25 at the best price in India.
Panel feed-through terminal block - HDFK 25 Product Properties:-
Number of positions:- 1
Number of connections:- 2
Number of rows:- 1
Connector system:- HDFK 25
Number of potentials:- 1
Insulation characteristics:-
- Overvoltage category III
- Degree of pollution3
Panel feed-through terminal block - HDFK 25 Electrical Properties:-
- Maximum load current:- 125 A
- Rated surge voltage:- 6 kV
- Nominal current IN:- 101 A
- Nominal current IN:- 101 A
To know more about all latest PCB Terminal Blocks you can visit at www.campuscomponent.com
