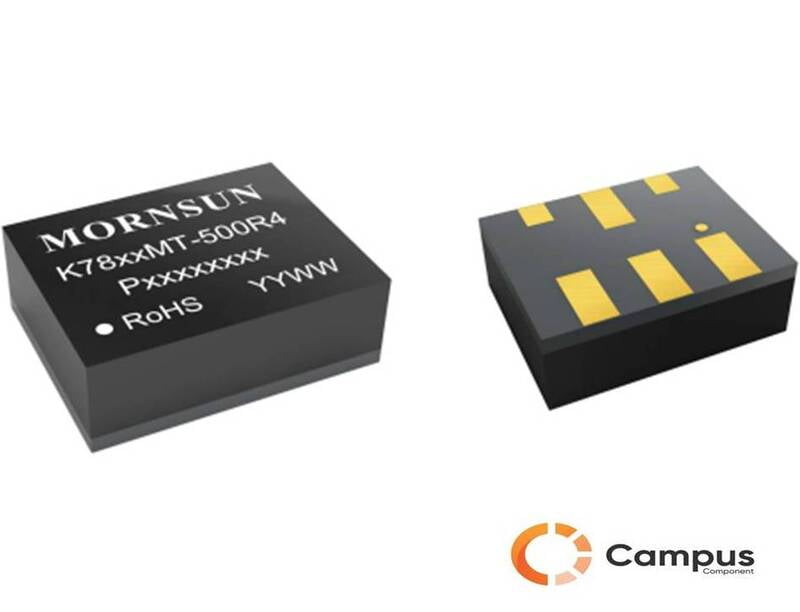

K7803MT-500R4 : 3.3V, 0.5A Non Isolated Dc-Dc Converter - PO-1728-D
K78_MT-500R4 series are high efficiency switching regulators. The converters feature high efficiency, low loss and short-circuit protection in a compact DFN package. These products are widely used in applications such as industrial control, instrumentation and electric power.
Get the high-quality K7803MT-500R4 Non Isolated Dc-Dc Converter at the best price in India.
Non Isolated Dc-Dc Converter Features:-
- Ultra-small, ultra-thin DFN package(9.00 x 7.00 x 3.10mm)
- Operating ambient temperature range: -40℃ to +105℃
- High efficiency up to 92%
- No-load input current as low as 0.1mA
- Output short-circuit protection
- Meets AEC-Q100 (under testing)
- EN62368 approved
- Case Material Black epoxy resin; flame-retardant and heat-resistant(UL94 V-0)
- Dimensions : 9.00 ×7.00 × 3.10mm
- Weight 0.58 g (Typ.)
- Cooling Method : Free air convection
