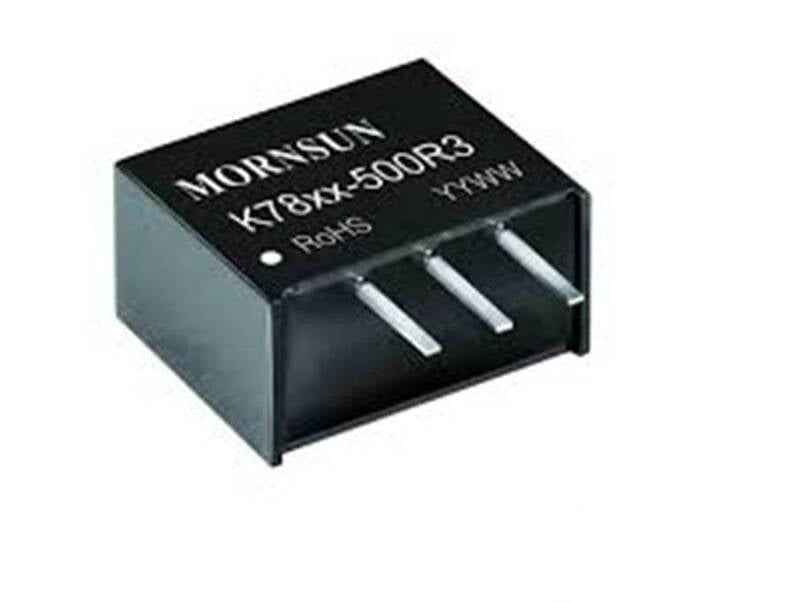

K7805-500R3 : 5V,0.5A Non Isolated Dc-Dc Converter - PO-1713-D
K78xx-500R3 series are high efficiency switching regulators and ideal substitutes of LM78xx series three-terminal linear regulators. The product is featured with high efficiency, low loss, short circuit protection , support the negative output and no heat sink requirement. They are widely used in industrial control, instrumentation, and electric power applications.
Get the high-quality K7805-500R3 : 5V,0.5A Non Isolated Dc-Dc Converter at the best price in India.
· High efficiency up to 95%
· No-load input current as low as 0.2mA
· Operating temperature range: -40℃ to +85℃
· Support the negative output
· Output short circuit protection
· Pin-out compatible with LM78XX linear regulators
· UL60950,EN60950 approval
- Casing Material Black flame-retardant and heat-resistant plastic (UL94-V0)
- Package Dimensions : 11.60*7.55*10.16 mm
- Weight 1.8g (Typ.) Cooling Method Free air convection
