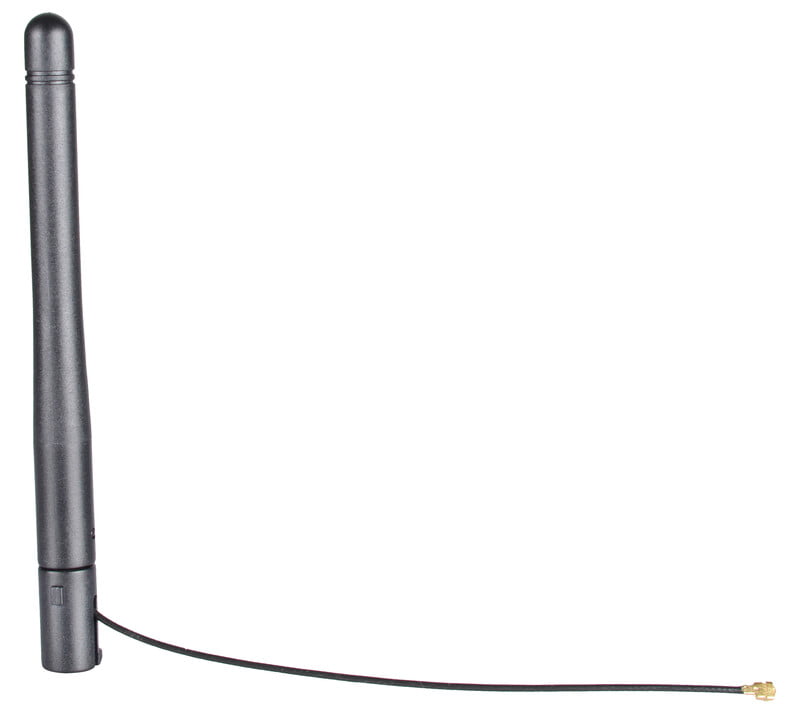

GSM Antenna with Rf cable (10 cm lenght)-AN-102-D

GSM Antenna with Rf cable (10 cm lenght)-AN-102-D

Non-returnable
₹95.00
SKU
AN-102-D
SPQ
100
MOQ
1
Visible Manufacture Name
MICROADAPT
Weight (gm)
0.004kg
Brand/MFR No
UBINTEX
Quantity
Add to Cart
Product Details
GSM Antenna with Rf cable Features:-
  • Impedance 50 ohm
  • Temperature Range -40 to +90 degree C
  • VSWR(1) 1.2 max. (DC to 3GHz)
  • VSWR(2) 1.3 max. (3 to 6 GHz)
  • Suitable Connector Cable MM9329-2700
  • Outer Diameter 0.8mm
  • Outer Conductor Construction Single shield
  • Insulation Material PFA
  • Minimum Bending Ratio 3.3mm
  • Center Contact Copper Alloy
  • Finish Gold plated
  • Outer Contact Copper Alloy
  • Finish Silver plated
  • Insulator Engineering plastic
  • Rated Voltage 250V
  • Contact Resistance (max. ) 0.015ohm
  • Withstanding Voltage 300RMS (AC)
  • Insulation Resistance (min. ) 500M ohm
  • Durability 100 cycles
  • Engage Forcev (max. ) 29.4N
  • Disengage Force (min. ) 2.9N
  • Disengage Force (max. ) 19.6N
  • Frequency Rating to 6.0 GHz
Get the high-quality GSM Antenna with RF cable at the best price in India.
