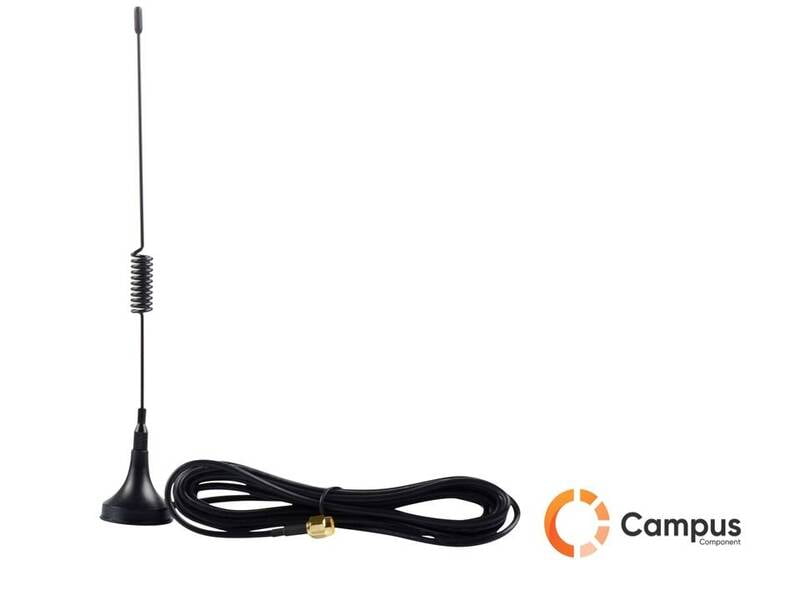

GSM 3DBI Magnetic Mount Spring antenna -AN-88-D
Non-returnable
₹120.00
SKU
AN-88-D SPQ
100 MOQ
1 Visible Manufacture Name
UBINTEX Weight (gm)
0.07kgStock Available
20 Choose Quantity
Product Details
Get the high-quality GSM 3DBI Magnetic Mount Spring antenna at the best price in India.
GSM 3DBI Magnetic Mount Spring antenna is designed for GSM GPRS 900/1800mhz system of communication terminal system. The antenna is structure compact and convenient for easy installation. Commonly used in GSM repeater ,GSM sensor, GSM module & GSM modems.
GSM 3DBI Magnetic Mount Spring antenna Electrical Specifications:-
- Frequency range(MHz) 900-1800
- Bandwidth (MHz) 70/170
- Gain (dBi) 3
- VSWR ≤2.0
- Input Impedance(Ω) 50
- Polarization Vertical
- Maximum input power(W) 50
- Input connector type SMA Male or Requested
GSM 3DBI Magnetic Mount Spring antenna Mechanical Specifications:-
- Dimensions(mm) 30×200
- Antenna weight(g) 50
- Mounting way Magnetic adsorption
- Operating temperature(°c) -40~60
Explore all the Latest Products of Antenna
