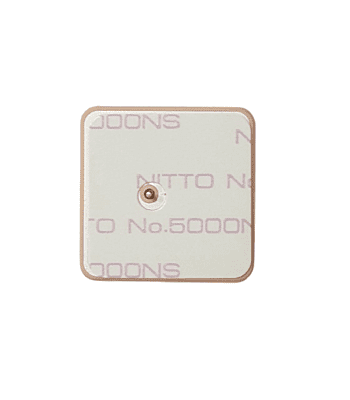

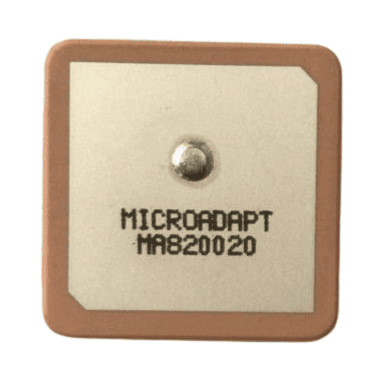

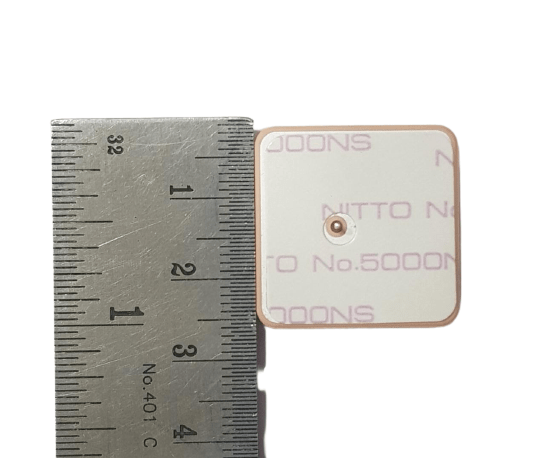

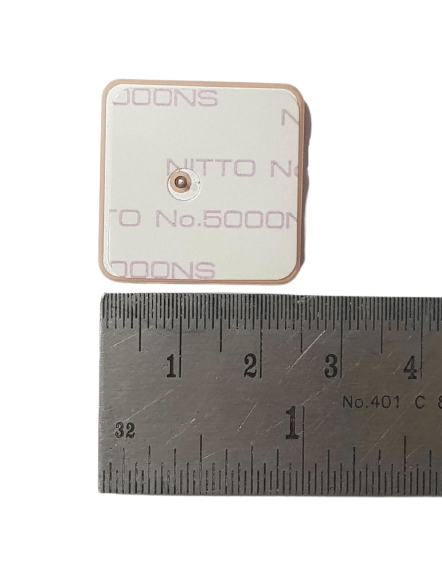

GPS Antenna With Glonass-AN-986-D
Non-returnable
₹55.00
Out of stock
Product Details
GPS Antenna With Glonass Feature:-
- High gain
- Compact Pin type Customization available
Get the high-quality GPS Antenna With Glonass at the best price in India.
GPS Antenna With Glonass Electrical Specifications:-
- Centre Frequency: 1590± 3.0 MHz
- Return Loss @ F0: ≥ 15 dB
- Bandwidth @ 10dB Return loss: ≥ 20 MHz
- Polarizetion: RHCP
- Zenith Ground plane: 70x70 mm
- Impedance: 50 Ω
- Frequency Temperature Coefficient: ± 20 ppm/℃
- Operation Temperature Range: -40 ~ +85℃
To know more about all latest Products of GPS Antenna you can visit at www.campuscomponent.com
Attachment:-
