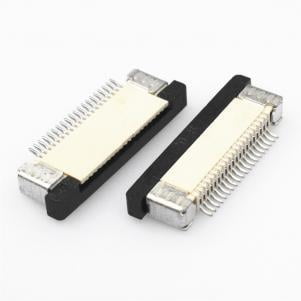

FPC/FFC connector KLS1-1242E-2.0 - CO-2005-D
₹15.00
SPQ
1300 MOQ
1 Visible Manufacture Name
KLS Electronics Visible Manufacturer’s code
L-KLS1-1242E-2.0-40-T-U-RStock Available
1449 Choose Quantity
Product Details
FPC/FFC connector KLS1 Order Information:-
- KLS1-1242E-2.0-XX-T-U-R
- XX-No.of 06 ~ 60pin
- T-SMT Pin
- U-Upper Contact L-Lower Contact
- R-Reel T-Tubes
Get the high-quality FPC/FFC connector KLS1-1242E-2.0 at the best price in India.
FPC/FFC connector KLS1 Material:-
- Housing: LCP UL94V-0
Plug spring: phosphor bronze, Tin Plated / Gold Plated
Soldering lug
Electrical Characteristics:-
- Rated current:0.4A
- Rated voltage:50V
- Withstand voltage:200V
- Contact resistance:≤20mΩ
- Insulation resistance:500MΩ
- Operating Temperature: -20℃ To +85℃
To know more about all latest Products of FPC Connector you can visit at www.campuscomponent.com
