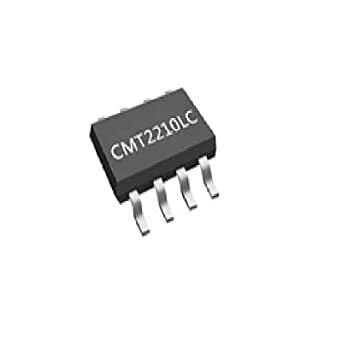

HOPERF CMT2210LH-ESR - TR-3337-D
₹25.00
SPQ: 100, MOQ:1
SPQ
100 MOQ
1 Visible Manufacture Name
HopeRF Visible Manufacturer’s code
CMT2210LH-ESR Weight (gm)
0.001Stock Available
2 Choose Quantity
Product Details
CMT2210LH is a low power, high performance OOK RF receiver, suitable for wireless applications with 315 / 433.92 / 868 / 915 MHz and nearby frequency points in a ISM band. The CMT2210LH is a real plug and play chip. The CMT2210LH operates in a band of 300 - 960 MHz. The change of RF frequencies can be fulfilled by selecting crystals with different frequencies. The crystal frequencies corresponding to different RF frequencies can be read from the RFPDK interface. This chip is capable of a data rate range of 0.5 – 40 kbps and it is optimized to 1 - 5 kbps as factory setting, ideal for pairing with the low-cost transmitter based on the encoder or MCU.
CMT2210LH-ESR Features:-
- Operating frequency: 300 - 960 MHz
- OOK demodulation
- Data rate: 0.5 - 40 kbps
- Sensitivity: -109 dBm (3.0 kbps), 0.1¾R
- Receiver bandwidth: 330 kHz
- Image rejection ratio: 30 dB
- Maximum input signal: 10 dBm
- Run independently. Input from the antenna and output from data pin.
- No need for register configuration.
- Supply voltage options:
- 3.0 – 5.5 V (High voltage mode)
- 2.0 – 3.6 V (Low voltage mode)
- Low power consumption: 4.5 mA@ 433.92 MHz
To know more about all latest Products of Transceiver Module you can visit at www.campuscomponent.com
Attachment:-
