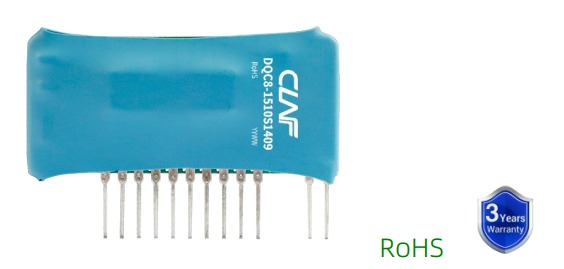

The Claf Power DQC8-1510S1409 is a compact 8W isolated IGBT gate driver module engineered to deliver reliable gate drive power for IGBTs and power MOSFETs used in high-performance power conversion systems. Designed with a 15V input and 14V/9V gate drive output, it ensures stable switching performance, excellent electrical isolation, and dependable operation in demanding industrial environments.

The module offers high-speed switching, low propagation delay, and high common-mode transient immunity (CMTI), making it suitable for applications requiring precise and efficient gate control. Reinforced isolation between the control and power stages enhances system safety while reducing electrical noise and interference.

With its industrial-grade reliability, compact PCB-mount package, and integrated protection design, the DQC8-1510S1409 is an ideal solution for industrial motor drives, solar inverters, UPS systems, welding equipment, EV charging infrastructure, and industrial automation equipment.

Key Features

• 8W isolated IGBT driver module
• Designed for IGBTs and Power MOSFETs
• 15V DC input
• 14V / 9V gate drive output
• Reinforced electrical isolation
• High-speed switching performance
• Low propagation delay
• High common-mode transient immunity (CMTI)
• Excellent noise immunity
• Stable gate drive characteristics
• Compact PCB-mount package
• Wide operating temperature range
• Industrial-grade reliability
• Easy system integration
• RoHS compliant

Applications

• Industrial motor drives
• Variable Frequency Drives (VFD)
• Industrial inverters
• Solar inverters
• UPS systems
• EV charging systems
• Welding equipment
• Switching power supplies
• Industrial automation
• Power conversion systems

Claf Power Isolated IGBT Driver Module DQC8-1510S1409 Datasheet
