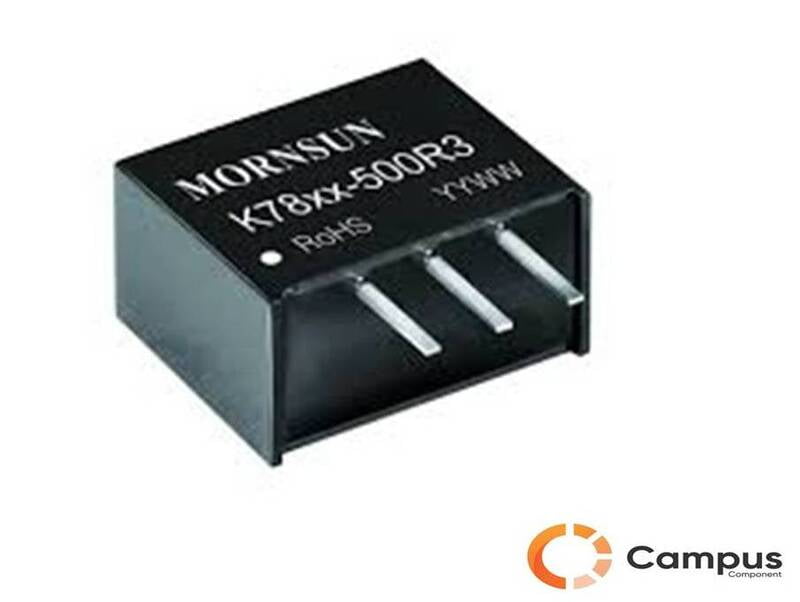

K7812MT-500R4: 12V, 0.5A Non Isolated Dc-Dc Converter - PO-1731-D
Non-returnable
₹90.00
SKU
PO-1731-D SPQ
10 MOQ
1 Visible Manufacture Name
MORNSUN GUANGZHOU SCIENCE & TECHNOLOGY CO., LTD. Visible Manufacturer’s code
K7812MT-500R4: 12V, 0.5A Weight (gm)
0.004kgStock Available
9 Choose Quantity
Product Details
K78_MT-500R4 series are high efficiency switching regulators. The converters feature high efficiency, low loss and short-circuit protection in a compact DFN package. These products are widely used in applications such as industrial control, instrumentation and electric power.
Get the high-quality K7812MT-500R4 Non Isolated Dc-Dc Converter at the best price in India.
K7812MT-500R4 Non Isolated Dc-Dc Converter Features:-
- Ultra-small, ultra-thin DFN package(9.00 x 7.00 x 3.10mm)
- Operating ambient temperature range: -40℃ to +105℃
- High efficiency up to 92%
- No-load input current as low as 0.1mA
- Output short-circuit protection
- Meets AEC-Q100 (under testing)
- EN62368 approved
K7812MT-500R4 Non Isolated Dc-Dc Converter Specifications:-
- Case Material Black epoxy resin; flame-retardant and heat-resistant(UL94 V-0)
- Dimensions 9.00 ×7.00 × 3.10mm
- Weight 0.58g(Typ.)
- Cooling Method : Free air convection
To know more about all latest Products of Non Isolated DC-DC Converter you can visit at www.campuscomponent.com
