Rf Cable (Black) 10cm Antenna-AN-97-D

Prominent & Leading Exporter and Distributor from Pune, we offer Antenna such as GSM Internal Antenna, Antenna Gsm-2 DBI Rubber Duck R/A SMA (M), Antenna GPS 3V Magnetic Mount SMA - 3m Cable, GSM 3dBi Spring Type Antenna, 5dBi GSM Antenna, 7dBi GSM Antenna and many more items.

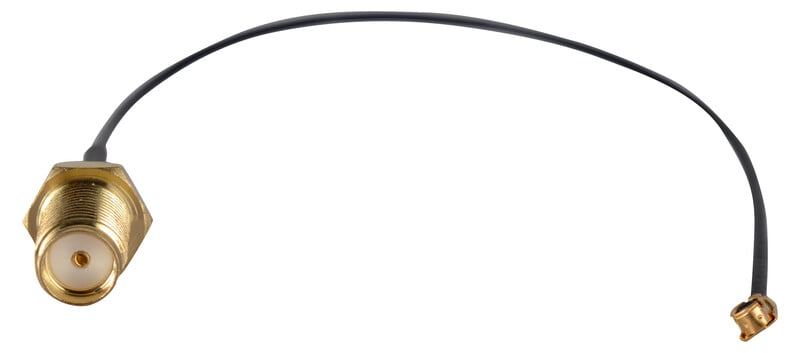

Rf Cable (Black) 10cm

Features:

Impedance 50ohm
Temperature Range -40 to +90degree C
VSWR(1) 1.2 max. (DC to 3GHz)
VSWR(2) 1.3 max. (3 to 6GHz)
Suitable Connector Cable MM9329-2700
Outer Diameter 0.8mm
Outer Conductor Construction Single shield
Insulation Material PFA
Minimum Bending Ratio 3.3mm
Center Contact Copper Alloy
Finish Gold plated
Outer Contact Copper Alloy
Finish Silver plated
Insulator Engineering plastic
Rated Voltage 250V
Contact Resistance (max. ) 0.015ohm
Withstanding Voltage 300RMS (AC)
Insulation Resistance (min. ) 500M ohm
Durability 100cycles
Engage Forcev (max. ) 29.4N
Disengage Force (min. ) 2.9N
Disengage Force (max. ) 19.6N
Frequency Rating to 6.0 GHz
