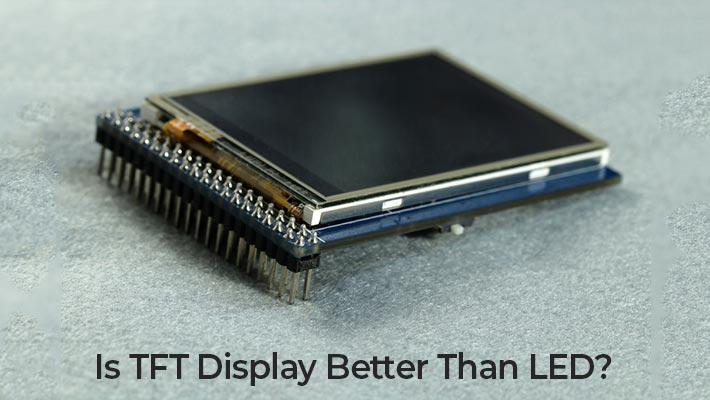

Is TFT Display Better Than LED?

19.11.22 07:54 AM By AKB

Electronic displays that are utilized in computers, TVs, and smartphones include TFT and LCD. TFT can be found in a wide variety ranging from Graphics LCD display to 240*128 COG Displays by manufacturers like Sinda Display, and DWIN. Keep reading this blog to understand more about TFT vs LED which is better.

What is TFT?

TFT represents a "Thin Film Transistor." These transistors are utilized in premium liquid crystal flat panel displays (LCDs). Each pixel on TFT-based displays has its own transistor. This makes the display brighter and depicts motion more smoothly by enabling the electrical current that illuminates the display to be turned on and off more quickly. TFT LCD Displays are referred to as "active-matrix" displays, which are superior to older "passive-matrix" LCDs in terms of quality. Therefore, a TFT AMLCD monitor is a "thin-film transistor active-matrix liquid crystal display" if you ever encounter one at your neighborhood computer store. In essence, it is a top-notch flat-screen display.

What is LED?

Electrical equipment frequently uses light-emitting diodes (LEDs) as a conventional source of illumination. It can be used for a variety of things, including mobile phones and huge billboards for advertising. They are typically used in gadgets that display various forms of data and display time.

When an electric current passes through a semiconductor device called a light-emitting diode (LED), the LED emits light. An LED produces light when electricity passes through it due to the recombination of its electrons and holes. LEDs limit the direction that current can travel in and prevent it from going in the other direction.

P-n junctions in light-emitting diodes are highly doped. When forward-biased, an LED will emit a colored light at a certain spectral wavelength depending on the semiconductor material employed and the amount of doping. An LED is enclosed with a transparent cover, as seen in the image, to allow the light emitted to escape.

How Does TFT Display Technology Work?

Liquid crystal material is sandwiched between two glass plates in a TFT LCD Display (Thin-Film-Transistor Liquid Crystal Display) technology. The precise amount of light that is permitted to pass and the colors that are produced are controlled by two polarizer filters, color filters (RGB, red/green/blue), and two alignment layers.

A transistor and capacitor are coupled with each pixel in an active matrix, allowing each sub-pixel to keep its charge rather than requiring an electrical charge to be transferred every time it has to be updated. Light flow is controlled by the TFT layer. The color is shown through a color filter, and your viewable screen is housed in the top layer.

Utilizing an electrical charge to modify the molecular structure of the liquid crystal material to allow different backlight wavelengths to "pass-through". The TFT display's active matrix is constantly changing and refreshes quickly based on the signal received from the control device.

The underlying density (resolution) of the color matrix and TFT arrangement determine the pixels of TFT displays. Higher detail is possible with more pixels. The TFT displays are defined by the available screen size, power consumption, resolution, and interface (how to connect). The underlying density (resolution) of the color matrix and TFT arrangement determine the pixels of TFT displays. Higher detail is possible with more pixels. The TFT displays are defined by the available screen size, power consumption, resolution, and interface (how to connect).

The TFT screen requires a white, bright backlight to produce the image since, unlike OLED displays, it cannot emit light on its own. Modern panels generate their light using LED backlight (light emitting diodes), which by design uses less power and takes up less space. The TFT display screen, LED backlight, and drive circuits are all included in TFT display modules.

What is the difference between TFT and LED?

TFT and LED screens both use LCD technology; the only distinction is in the backlighting. CCFL (cool compound fluorescent lamp) is used by TFT LCD Displays whereas LED is used for the other's backlight.

· When compared to TFT, LED uses less power since, as you are probably aware, it uses significantly less power than a CFL. Additionally, the CCFL configuration would be in an array behind the screen to provide uniform illumination. As a result, it uses more energy.

· In the case of LED monitors, LEDs are positioned next to the screen's edges.

· The only negative effect of this would be that occasionally the corners would be brighter than the center. You might also believe that they use white LEDs, but in reality, they actually use blue LEDs that have been coated in phosphorous to appear white. The composition of this coating might fluctuate, which affects the color tone that different firms display.

Benefits and Uses of TFT LCD Displays

TFT LCD displays from trusted manufacturers like Sinda Display, and DWIN provide a number of benefits over other display kinds (CRT, Plasma). Mobile phones, laptops, hang-on-the-wall LCD TVs, flat computer monitors, and other hand-held devices are all made possible by their lightweight, thin design, and energy efficiency. TFT LCDs at Campus Component by Sinda Display, DWIN are reasonably priced, making them popular in the display industry.

When we refer to an LCD kind, we mean either an Active TFT color display or a Passive Monochrome panel. Passive matrix LCD was widely utilized for many years prior to the development of TFT displays. Only monochrome displays, such as those on calculators, watches (not watches), thermostats (not Nest), utility meters, etc., can employ passive matrix LCD technology. The world is more colorful as a result of TFT LCD.

Summary-

Overall, TFT panels are only used in low-end phones, such as feature phones and entry-level Android phones, despite the fact that they have certain clear advantages. TFT screens are rarely used in mid-range and high-end devices since plastic feels less pleasant to the touch than glass.

TFT technology will eventually be implemented on more expensive gadgets as it advances. TFT displays were utilized by Samsung in the midrange Galaxy A13 and Galaxy A23 models in 2022. Those improvements may already be taking place. The most common display type currently found in contemporary cell phones is LCD. Campus Component offers you a wide variety of TFT panels or displays from premium manufacturers like Sinda Display and DWIN, products you can find range from Graphics LCD displays, COB LCD Display, TFT displays, OLED display modules, 3/5/7-inch TFT Displays, 16*2 Character Display, 8*1 Character Display, 128*64 LCD Display 240*128 COG displays and more at the very top of the market.

TFT displays have components of greater quality than typical LCD displays. Compared to LCD panels, TFT displays are crisper, brighter, and refresh faster. Visit Campus Component today to place orders.
