16x2 Y/G 3.3V(N) LCD Display -LC-557-D
Non-returnable
₹150.00
SKU
LC-557-D SPQ
400 MOQ
1 Visible Manufacture Name
SINDA Visible Manufacturer’s code
SDCB1602-01 Weight (gm)
0.04kgStock Available
1126 Choose Quantity
Product Details

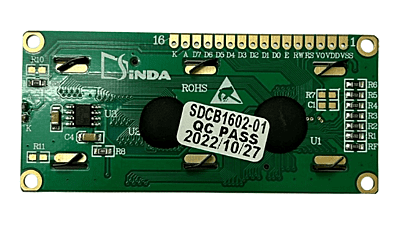

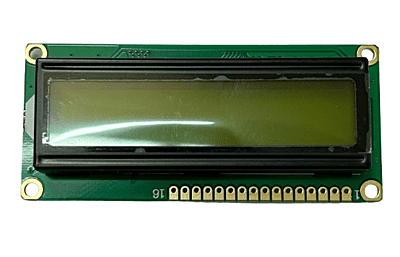

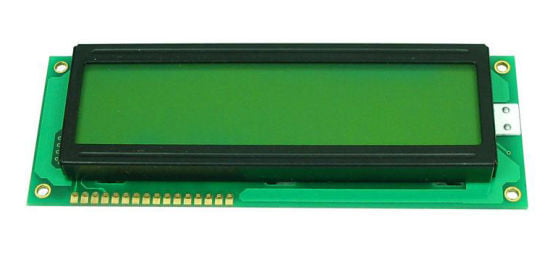

16X2 (S) COB LCD Y/G-3.3 V Display is professional Monochrome LCD display for Industry application, include digital panel meter, UPS, inverter, multi-function meter, POS machines, Fuel Dispenser, Oil Dispenser, Gas Dispenser, Flow Meter, KWH Meter, Energy Meter, Water Meter, Gas Meter, Smart Meter, Clock. Our Character LCD Module 16*2 has various different models on shelf and accept custom develop to meet your special requirement. We can develop different interface like I2C, Serial, and we also have different font available.
Get the high-quality 16X2 (S) COB LCD Y/G-3.3 V at the best price in India.
16X2 (S) COB LCD Y/G-3.3 V Features:-
- SDCB1602-01 Series LCD
- Display Contents :16 * 2 Characters (5*8 dots )
- Driving Scheme : 1/16Duty; 1/5Bias
- Viewing Direction :6 0’ clock
- Driver IC :AIP31066
- Interface :Parallel
- Backlight :Yellow-Green
- Operating Temperature :-20 C－﹢70 C
- Storage Temperature :-30 C－﹢80 C
- RoHS Compliant
16X2 (S) COB LCD Y/G-3.3 V Specifications:-
- Outline Dimensions : 80.00(W) x 36.00(L) x 13.00(H)(mm)
- Viewing Area : 64.50 (W) x 14.50(L)(mm)
- Active Area : 55.70 (W) x 11.00 (L)(mm)
- Character size : 2.90 (W) x 5.15 (L)(mm)
- Character Pitch : 3.52 (W) x 5.85 (L)(mm)
- Dot Pitch : 0.54 (W) x 0.60 (L)(mm)
- Dot Size : 0.59 (W) x 0.65 (L)(mm)
To know more about all latest Products of LCD Display you can visit at www.campuscomponent.com
