What is a Raspberry Pi Touch Screen LCD?
In the UK, the Raspberry Pi family of small single-board computers was developed in partnership by the Raspberry Pi Foundation and Broadcom. The Raspberry Pi project's primary goal was to promote the study of fundamental computer science in classrooms and in developing countries. The initial model sold outside of its intended market for applications like robotics because it was more widely used than planned. Because of its inexpensive cost, versatility, and open design, it is frequently used in numerous fields, including weather monitoring. Due to its support of the HDMI and USB standards, computer and electronic enthusiasts frequently utilize it.
How Does Raspberry Pi Work?
Through the DSI connector, the Raspberry Pi Touch Display, an LCD display, is connected to the Raspberry Pi. The Raspberry Pi Touch Screen LCD occasionally permits simultaneous use of the HDMI and LCD screens. Here are some characteristics of Raspberry Pi Touch Screen LCD-
Board Assistance
All Raspberry Pi models can use the DSI display, but the Model A and B models will require additional mounting hardware to fit the HAT-dimensioned stand-offs on the display PCB because they lack mounting holes.
Physical Installation
The next figure shows how to connect the Raspberry Pi's power and data connections (red/black wires) to the display as well as how to mount the Raspberry Pi to the back of the Touch Display (if necessary). If you are not putting the Raspberry Pi to the back of the display, take extra care to attach the ribbon cable correctly. The GND and 5v pins should each have a black and red power cable connected to it.
A Raspberry Pi 1 Model A or B should be used to connect the display; otherwise, the remaining three pins should be left unconnected. For further information on connecting the display to a primary Raspberry Pi, refer to the section on legacy support.
Display Orientation
In order to achieve the greatest results, LCD displays must be oriented differently depending on how the screen is installed. LCD displays have an ideal viewing angle. By default, the Raspberry Pi Touch Display and Raspberry Pi are configured to perform their best when used on a surface that is somewhat elevated, like a desktop. If viewing from below, you can manually turn the display about and instruct the system software to make the screen operate upside down as compensation.

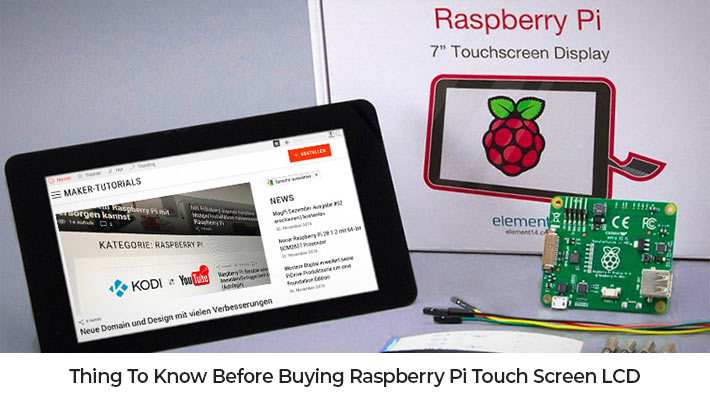

Thing To Know Before Buying Raspberry Pi Touch Screen Display LCD
With the fourth version of Raspberry Pi, makers have access to new worlds thanks to card-sized packages. The display on the Raspberry Pi is essential because it transforms it into a portable computer. Here are some useful recommendations and viewpoints for picking a Raspberry Pi display.
When selecting a Raspberry Pi screen, keep the following things in mind:
The diagonal length of a screen is referred to as screen size and is often measured in inches. The desired screen size is often determined by the project's requirements and budget.
The term "screen brightness" describes the luminous intensity of the screen's surface, which is typically 200cd/sq.m for a display, which is enough for everyday use.
The total amount of pixels that can be displayed on the screen is referred to as screen resolution. The degree of detail in a photograph is directly connected to its resolution. The display will stretch and shrink to meet the requested resolution if the resolution chosen is incompatible, thus reducing the signal and quality.
Also take into account the screen's suitability for the Raspberry Pi model. Connectors are used by the Raspberry Pi screen to efficiently communicate with other peripheral devices. The most popular connectors are AV input, VGA, and HDMI. Everything else needs to be created to exactly fit the Raspberry Pi, whether it be a back-mounted bracket, a stand-alone kind, or an integrated shell screen design.
How to Add an LCD Touchscreen Display To Your Raspberry Pi?
One of the nicest accessories you can add to a Raspberry Pi is a touchscreen display. A beautiful display always improves how portable your project is overall. With portable TFT LCD displays, a wide range of applications are possible. Even better, you could build your own personalized smartphone! However, because they are expensive and difficult to connect to the Raspberry Pi, the majority of monitors go unused. This article for connecting a 3.2-inch touchscreen LCD to a Raspberry Pi will walk you through the process. A resistive touchscreen and stylus are also included with this TFT LCD display.
The monitor I went with was the WaveshareSpotPear 3.2-inch LCD touchscreen. It is the simplest and least expensive LCD with a touch interface that can be added to Raspberry Pi projects, as far as I could discover after doing some research. There are many things you can do with these displays. Build a mobile kiosk, head-mounted displays (like the SmartCap), or simply include it into any of your ongoing projects that call for an LCD screen with a touch interface.
How Does Adding The LCD Touchscreen Display Work?
It's easy to connect your Raspberry Pi to the LCD monitor. Female headers compatible with the Raspberry Pi's GPIO pins are included with the LCD module. This implies that all you need to do is connect your display module to the GPIO pins on your Raspberry Pi. There is no need for additional connectors or connections. The 320x240 resolution of the TFT LCD display on this touchscreen is available to you. Here are some more specifics regarding the Waveshare 3.2-inch LCD screen.
We are using an LCD panel with a touchscreen here. In order to connect such screens to a Raspberry Pi, you often need to install a number of drivers. However, I offer a Raspbian OS image file here. This indicates that all you need to do to get your Raspberry Pi up and running with the LCD display and touch interface is install the OS I give on your SD card.
The SPI communication protocol is employed by this Raspberry Pi touchscreen LCD. You don't need to bother about the connections because the Raspberry Pi's GPIO pins are directly hooked into the female header of the 3.2-inch LCD touchscreen display.
Configuring the 3.2-inch Raspberry Pi Touchscreen LCD Display with the Raspbian OS Image
In order to connect a touchscreen LCD monitor to the Raspberry Pi, you typically need to install different drivers, modify the kernel, etc. You can put all that behind you when working on this project. Install Raspbian by simply copying the .img file to your SD card. The file and datasheet for the display are available here. The picture file is located in the "IMAGE" folder.
Installing this image file on your Raspberry Pi is the next step. Grab an SD card reader and an empty SD card. Check out these instructions from the Raspberry Pi foundation if you're a Windows user.
Check the drive letter that was assigned by inserting the SD card into your SD card reader. When using Windows Explorer, you can quickly find the drive letter (for instance, G:) by glancing in the left column. If your device has one, you can insert a cheap SD adapter into a USB port or utilize the SD card slot.
You can run the Win32DiskImager programmed from a USB drive by downloading it from the Sourceforge Project page (it is also available as a zip file).
Run the Win32DiskImager tool by extracting the executable from the zip file; you might need to run the tool as an administrator. Run as administrator by choosing with a right-click on the file.
Choose the image file that you extracted before.
In the device box, choose the SD card's drive letter. Be careful to choose the right drive; if you pick the wrong one, your data on the computer's hard disc could be destroyed. Try using a cheap SD adapter in a USB port if you are using an SD card slot on your machine and are unable to see the drive in the Win32DiskImager dialogue.
Wait for the write to finish before clicking Write.
Eject the SD card after turning off the imager.
Now turn on your Raspberry Pi and insert this SD card. In a few seconds, the display ought to start to come to life.
Linux users should:
After that, put your SD card in the Raspberry Pi and turn it on to test it. The touchscreen LCD display of the Raspberry Pi should start up.
You have connected a Raspberry Pi to an LCD touchscreen display successfully! Now, you can include this gorgeous display into whatever project you're working on, and you'll have a stylish touch interface for entering inputs. See the touchscreen LCD display of the Raspberry Pi in action in the demonstration video down below.
Conclusion
One of the nicest things you can ever add to a raspberry pi is a touchscreen display. A well-organized display always improves the vibe of your project. With portable LCD displays, a wide range of applications are possible. To help you make the most of the raspberry pi touch screen LCD, here is a list of factors you should consider before buying a Raspberry Pi Touch Screen LCD.
