In today's era of Internet of Things, sensors play a crucial role in enabling smart devices and systems to gather, analyze, and respond to data. Among the leading pioneers in sensor technology, Winsen has been consistently delivering cutting-edge solutions that drive innovation across various industries. In this blog, we will explore the latest Winsen Sensors and their potential to revolutionize the world of IoT technology.
Winsen is a leading manufacturer of sensors for a variety of applications, including industrial, automotive, and consumer electronics. The company's latest sensors offer a number of advantages such as improved accuracy, sensitivity, and durability.

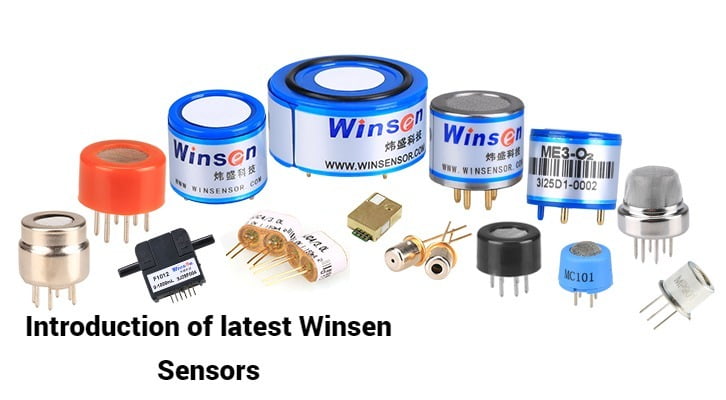

Here are some of the latest Winsen sensors:
Sensitive material of MQ-6 gas sensor is SnO2,which with lower conductivity in clean air. When the target flammable gas exist, the sensor’s conductivity gets higher along with the gas concentration rising. MQ-6 gas sensor has high sensitivity to butane, propane, methane and can detect methane and propane at the same time. It also can detect kinds of flammable gases, especially LPG(Propane). It is a kind of low–cost sensor for many applications.
Features
It has good sensitivity to flammable gas (Especially Propane) in wide range
long lifespan
low cost and simple drive circuit &etc.
Applications:
It is widely used in domestic gas leakage alarm
Industrial flammable gas alarm and portable gas detector.
Sensitive material of MQ-2 gas sensor is SnO2, which with lower conductivity in clean air. When the target flammable gas exist, the sensor’s conductivity gets higher along with the gas concentration rising. It is with low cost and suitable for different applications of detecting kinds of flammable gases.
Features:
It has good sensitivity to propane
smoke &etc in wide range
has advantages such as long lifespan,
low cost and simple drive circuit &etc.
Applications:-
It is widely used in domestic gas leakage alarm
industrial flammable gas alarm and portable gas detector
MQ5 Gas Sensor Description:-
Sensitive for LPG, natural gas, coal gas
Output voltage boosts along with the concentration of the measured gases increases
Fast response and recovery
Adjustable sensitivity
Signal output indicator
MQ5 Gas Sensor Specifications:-
Power: 2.5V ~ 5.0V
Dimension: 40.0mm * 21.0mm
Mounting holes size: 2.0mm
MQ5 Gas Sensor Applications:-
Gas leakage detector
Sensitive material of MQ-4 gas sensor is SnO2,which with lower conductivity in clean air. When the target flammablegas exist, the sensor’s conductivity gets higher along with the gas concentration rising. MQ-4 gas sensor has high sensitivity to methane, also has anti-interference to alcohol and other gases.
Features:-
It has good sensitivity to methane in wide range
long lifespan
low cost
simple drive circuit &etc.
Applications:-
It is widely used in domestic gas leakage alarm
industrial flammable gas alarm and portable gas detector
MP-2 model with advanced planar construction is comprised of heater and metal oxide semiconductor material of subminiature Al2O3 ceramic plate, fetch out electrode down-lead, encapsulation in metal base and cap. When the target gas exists , the sensor’s conductivity is more higher along with the gas concentration rising.
Features:
Good sensitivity to LPG, smoke in wide range
Small size
Long lifespan
Low cost
Simple circuit
Application:
Domestic smoke leakage alarm
industrial smoke gas alarm
portable smoke detector
MP-4 model with advanced planar construction is comprised of heater and metal oxide semiconductor material of subminiature Al2O3 ceramic plate, fetch out electrode down-lead, encapsulation in metal base and cap. When the target gas exists, the sensor’s conductivity is more higher along with the gas concentration rising.
Features:
Lower consumption
Small size
Fast response and resume
Highest sensitivity
Excellent stability and long life
Easy circuit and big signal output
Excellent selectivity
Application:
It is widely used in domestic gas leakage alarm
industrial flammable gas alarm
Portable gas detector
MP-5 gas sensor is for flammable gases. It adopts multilayer thick film manufacturing technology. The heater and metal oxide semiconductor material on the ceramic substrate of subminiature Al2O3 are fetched out by electrode down-lead, encapsulated in metal socket and cap. Conductivity of the sensor is affected by the concentration of target gas. The higher the concentration is, the higher conductivity of sensor gets.
Features:
Lower consumption
Small size
Fast response and resume
Highest sensitivity
Excellent stability and long life
Easy circuit and big signal output
Excellent selectivity
Application:
It is widely used in domestic gas leakage alarm
industrial flammable gas alarm
portable gas detector
ME2-CO-Ф14x14, fuel cell type sensor, detects gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.
Features:
Low consumption
High precision
High sensitivity
Wide linear range
Good anti-interference ability
Excellent repeatability and stability
Applications:
Widely used in commercial and civilian area to detect CO concentration
ZE15-CO is a general-purpose and miniaturization electrochemical carbon monoxide detection module. It utilizes electrochemical principle to detect CO in air which makes the module with high selectivity and stability. Built-in temperature sensor can do temperature compensation; and it has digital output and analog voltage output. It is a combination of mature electrochemical detection principle and sophisticated circuit design.
Features:
High sensitivity
high resolution
low power consumption
long lifespan
Supply UART,
analog voltage signal output ways
Applications:
Household CO alarm gas
smart home devices
MH-Z16 NDIR Infrared gas module is a common type, small size sensor, using non-dispersive infrared (NDIR) principle to detect the existence of CO2 in the air, with good selectivity, non-oxygen dependent and long life. Built-in temperature compensation; and it has digital output and PWM wave output. This common type infrared gas sensor is developed by the tight integration of mature infrared absorbing gas detection technology, precision optical circuit design and superior circuit design.
Features:
High sensitivity, Low power consumption
Good stability
Temperature compensation, excellent linear output
Output method: UART, PWM &etc
Long lifespan
Anti-water vapor interference, no poisoning
Application:
animal husbandry production
educational instruments
indoor air quality monitoring equipment
HVAC equipment
air purification equipment
ZE03 is a general-purpose and high-performance electrochemical module. It uses three electrodes, electrochemical gas sensor and high-performance micro-processor. By installing different gas sensor, the module could detect relevant gas. It has the digital output and analog voltage output at the same time which facilities the usage and calibration and shorten the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers’ different detection needs.
Features:-
High sensitivity & resolution
Low power consumption
UART and analog voltage output
Good stability and excellent anti-interference ability
Applications:-
Portable and fixed gas detector
various gas detection equipment and occasion
Conclusion:-
Winsen is a leading manufacturer of sensors. They offer a wide range of sensors for a variety of applications. Winsen sensors are known for their high quality, accuracy, reliability, and wide range of applications. If you are looking for a reliable and accurate sensor from Winsen reach out to Campus Component today!
