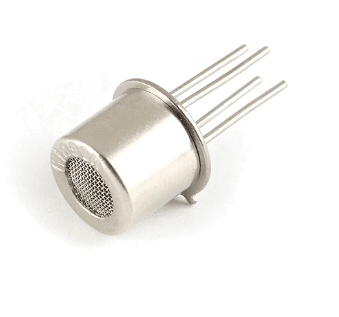

MP-5 Flammable Gas Sensor - SE-3297-D
₹290.00
SPQ: 1, MOQ:1, Product Package:
SPQ
1 MOQ
1 Visible Manufacture Name
WINSEN Visible Manufacturer’s code
MP-5 Weight (gm)
0.005Stock Available
5 Choose Quantity
Product Details
MP-5 gas sensor is for flammable gases. It adopts multilayer thick film manufacturing technology. The heater and metal oxide semiconductor material on the ceramic substrate of subminiature Al2O3 are fetched out by electrode down-lead, encapsulated in metal socket and cap. Conductivity of the sensor is affected by the concentration of target gas. The higher the concentration is, the higher conductivity of sensor gets. Users can adopt simple circuit to convert variation of conductivity into output signal corresponding to gas concentration.
Features:
- Lower consumption
- Small size
- Fast response and resume
- Highest sensitivity
- Excellent stability and long life
- Easy circuit and big signal output
- Excellent selectivity
Application:
- It is widely used in domestic gas leakage alarm
- industrial flammable gas alarm
- portable gas detector
