Waveshare 2.23inch OLED HAT - LC-3496-D
₹1,360.00
Product Details

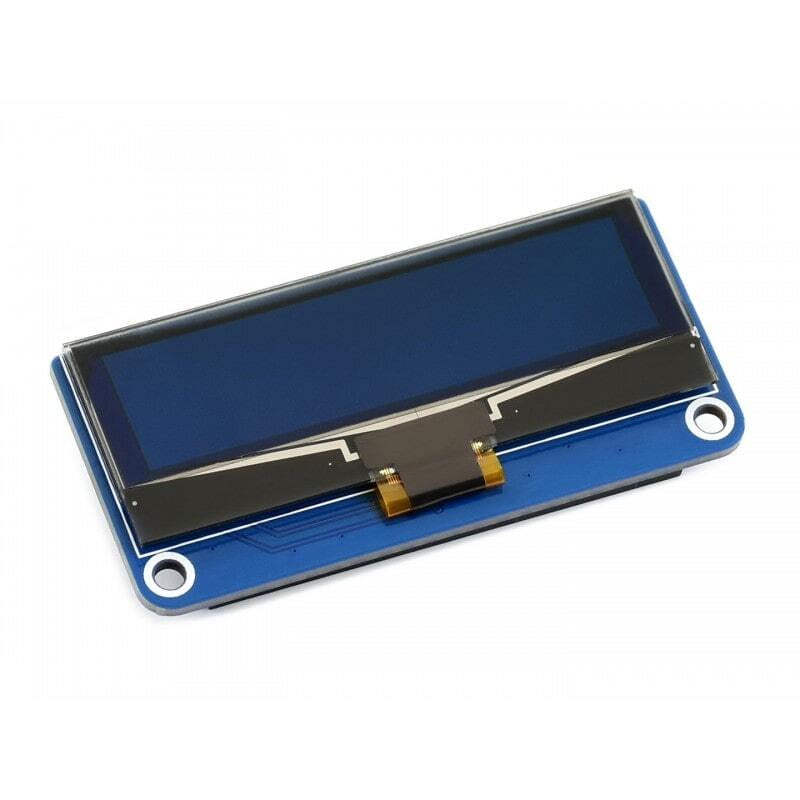

This is a 2.23inch OLED display with a controller. You can directly add it on Raspberry Pi by the 40 PIN pin header, or connect it to another hardware platform via the IIC and SPI interfaces. The interface of 2.23inch OLED HAT is the default SPI, you can also switch to I2C by soldering the resistors on the back of the OLED.
Get the high-quality 2.23inch OLED HAT at the best price in India.
Features of 2.23inch OLED HAT:
- Controller: SSD1305
- Interface: SPI/I2C/OLED
- Resolution: 128 * 32
- Display size: 2.23inch
- Pixel size: 0.41mm x 0.39mm
- Display color: White
- Working voltage: 3.3V
- Working temperature: -40~70℃
