Waveshare 1.8inch LCD Module - LC-3499-D
₹875.00
SPQ: 1, MOQ:1
SPQ
1 MOQ
1 Visible Manufacture Name
Waveshare Visible Manufacturer’s code
1.8inch LCD Module-13892 Weight (gm)
0.3kgStock Available
10 Choose Quantity
Product Details

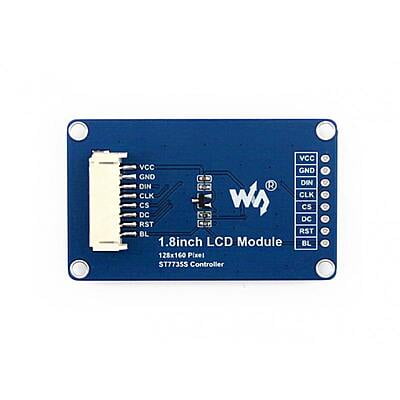

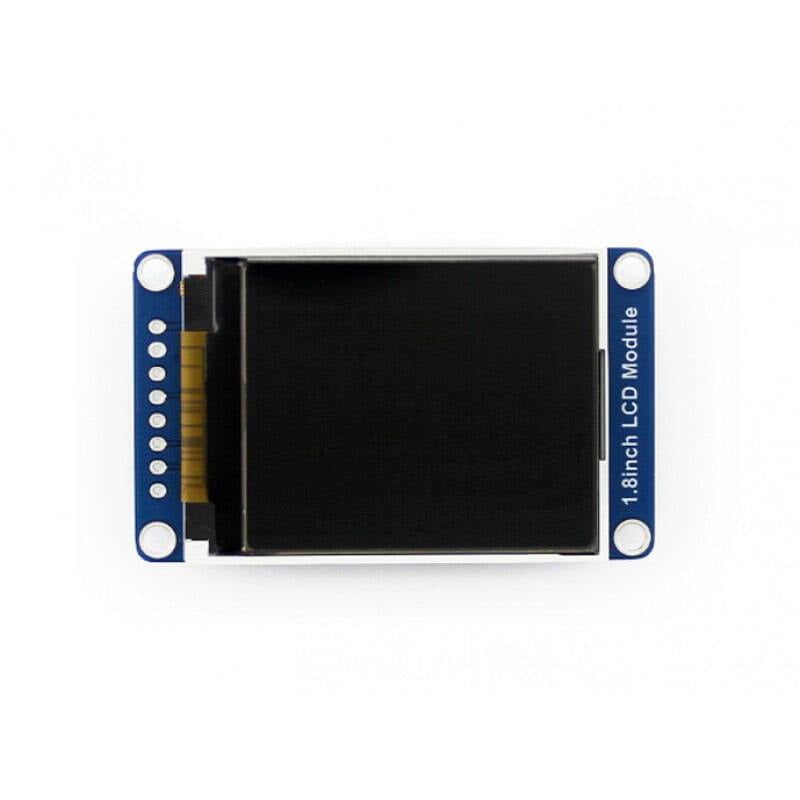

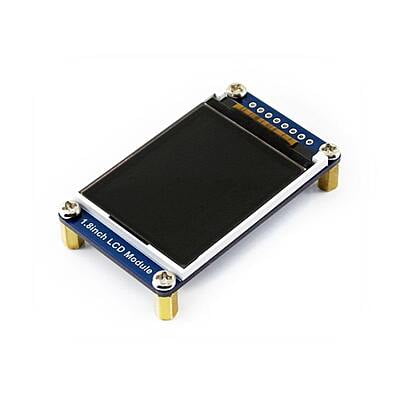

Waveshare 1.8inch LCD Module with resolution 128 * 160 (Pixel) with SPI interface. Operating voltage 3.3V/5V (When using 5V power supply, the logic voltage is 5V, when using 3.3V power supply, the logic voltage is 3.3V) with Display size: 35.04(W) * 28.03(H)(mm).
Get the high-quality Waveshare 1.8inch LCD Module at the best price in India.
Features of Waveshare 1.8inch LCD Module:
- Operating voltage: 3.3V/5V (When using 5V power supply, the logic voltage is 5V, when using 3.3V power supply, the logic voltage is 3.3V)
- Interface: SPI
- LCD type: TFT
- Driver: ST7735S
- Resolution: 128 * 160 (Pixel)
- Display size: 35.04(W) * 28.03(H)(mm)
- Pixel size: 0.219(W) * 0.219(H)(MM)
- Dimension: 56.5 * 34(mm)
