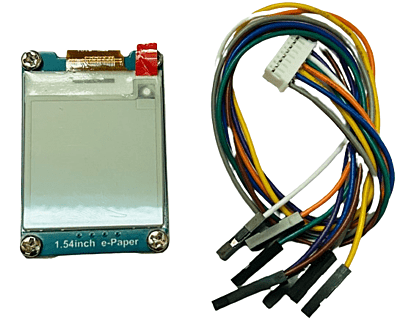

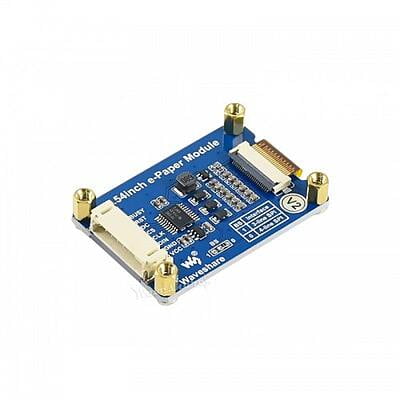

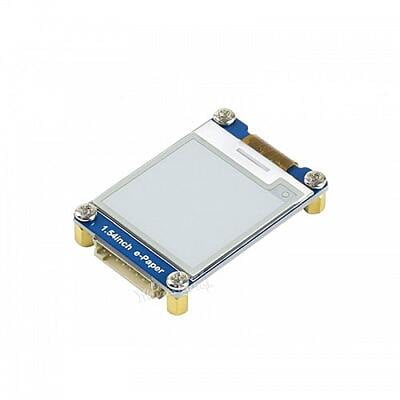

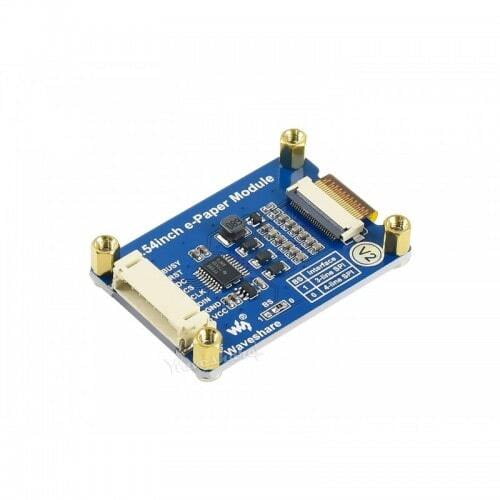

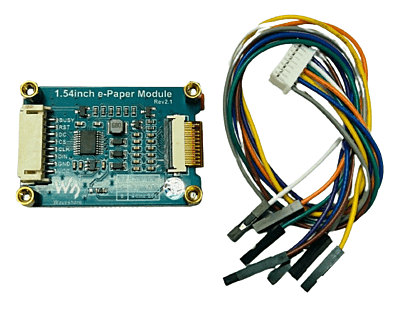

Waveshare 1.54inch e-Paper Module - LC-3505-D
₹980.00
SPQ: 1, MOQ:1, Product Package:
SPQ
1 MOQ
1 Visible Manufacture Name
Waveshare Visible Manufacturer’s code
1.54inch e-Paper Module-12955 Weight (gm)
0.3kgStock Available
14 Choose Quantity
Product Details
Waveshare 1.54inch e-Paper Module comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32). 1.54inch e-Paper Module having SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc. It has advantage of ultra-low power consumption because these displays have no backlight and it doesn’t need a continuous power supply.
Get the high-quality Waveshare 1.54inch e-Paper Module at the best price in India.
1.54inch e-Paper Module Features and Specifications:
- Operating voltage: 3.3V
- Interface: 3-wire SPI, 4-wire SPI
- Outline dimension: 31.8mm × 37.32mm × 1.05mm
- Display size: 27.6mm × 27.6mm
- Dot pitch: 0.138 × 0.138
- Resolution: 200 × 200
- Display color: black, white
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
