Waveshare 1.3inch OLED (B) - LC-3504-D
₹765.00
SPQ: 1, MOQ:1, Product Package:
Product Details

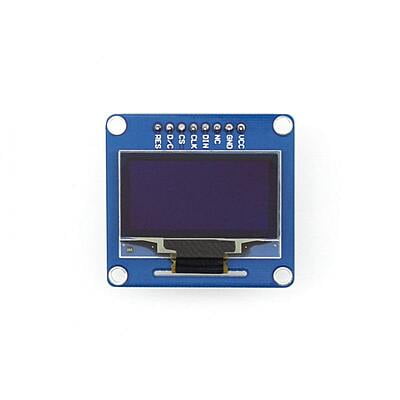

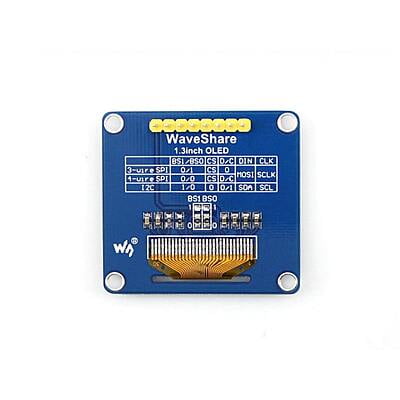

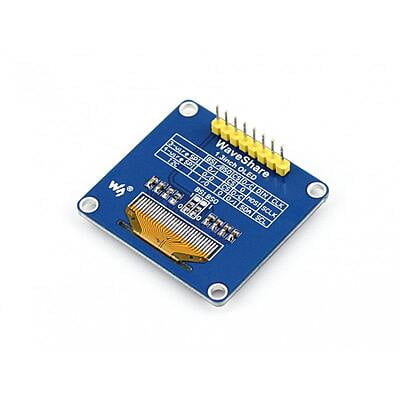

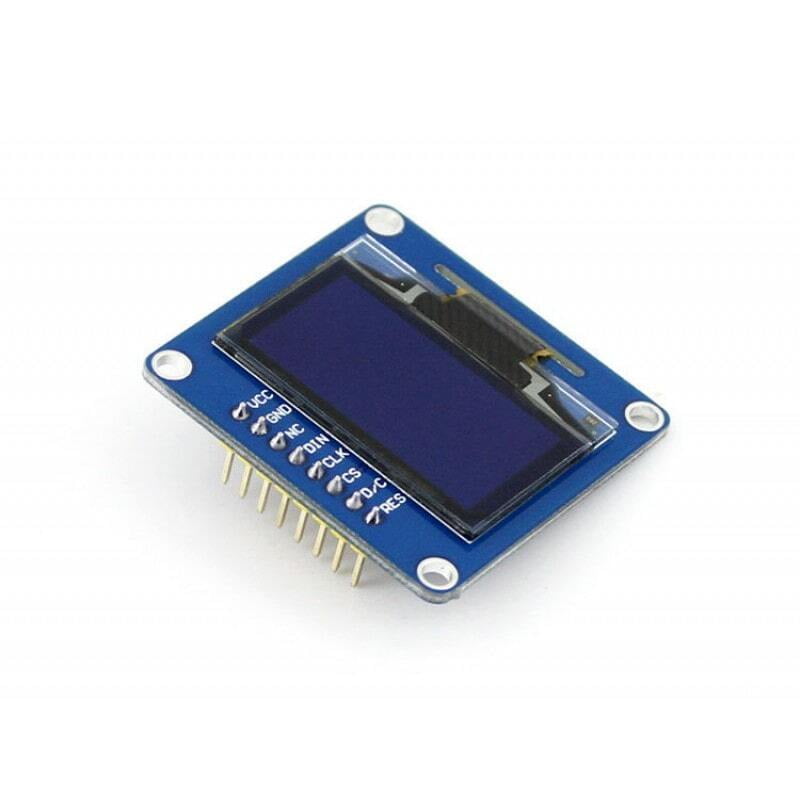

Waveshare 1.3inch OLED (B) Resolution 128*64 (Pixel). It has SH1106 driver and Communication Interface 3-wire SPI, 4-wire SPI, I2C.
Get the high-quality Waveshare 1.3inch OLED (B) at the best price in India.
Features Waveshare 1.3inch OLED (B):
- Operating Voltage: 3.3V/5V
- Communication Interface: 3-wire SPI, 4-wire SPI, I2C
- Screen Types: OLED
- Driver Chip: SH1106
- Resolution: 128*64 (Pixel)
- Display Size: 14.7（H）x 29.42（V）(mm)
- Pixel Size: 0.21 x 0.21 (mm)
- Dimension: 40.5 x 37.5(mm)
- Display Color: Blue
- Operating TEMP. (℃): -30~70
- Storage TEMP. (℃): -30~80
- Visible Angle: >160°
