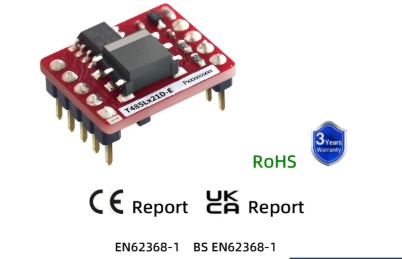

CLAF POWER Transceiver Module T485L521D-E - PO-3994-D
The Claf T485L521D-E is a high-performance isolated RS485 transceiver module designed to convert logic-level signals into isolated RS485 differential signals for robust industrial communication. The module integrates signal isolation, bus protection, and an isolated DC/DC power supply into a single compact package, simplifying system design and improving reliability.
Operating from a 5V DC supply, the module supports data rates up to 500kbps and provides up to 3000VDC isolation between communication and power domains. Its integrated protection features help safeguard equipment from electrical noise, voltage transients, and ground loop interference commonly encountered in industrial environments.
Designed for industrial automation, energy systems, instrumentation, and communication equipment, the T485L521D-E enables reliable long-distance RS485 communication while ensuring high system stability and safety.
Key Features:
- Isolated RS485 transceiver module
- Integrated isolated DC/DC converter
- 5V DC input supply
- Data rate up to 500kbps
- 3000VDC isolation voltage
- Built-in bus protection
- High EMI and noise immunity
- Supports multi-node RS485 networks
- Compact DIP package design
- Operating temperature: -40°C to +85°C
Applications:
- Industrial automation systems
- RS485 communication networks
- PLC and controller interfaces
- Energy management systems
- Industrial instrumentation
- Data acquisition systems
- Communication gateways
- Embedded control applications
