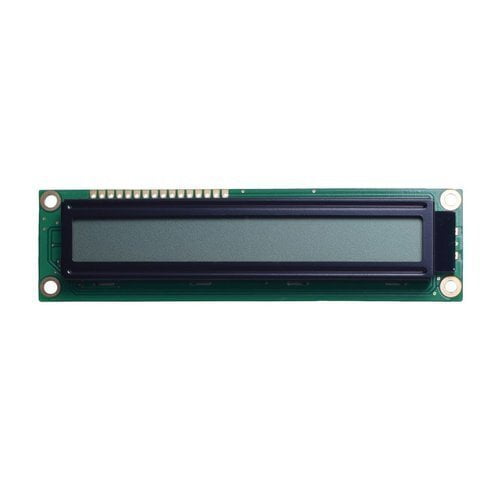

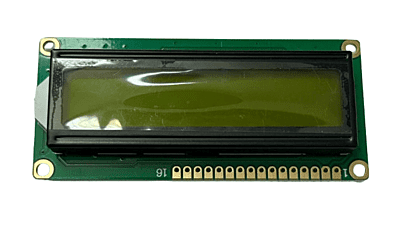

Sinda Display 16x1 (S) LCD Display Y/G-LC-607-D
Get the high-quality 16x1 (S) LCD Display Y/G at the best price in India.
16x1 (S) LCD Display Y/G Display is professional manufacturer of Monochrome LCD display for Industry application, include digital panel meter, UPS, inverter, multi-function meter, POS machines, Fuel Dispenser, Oil Dispenser, Gas Dispenser, Flow Meter, KWH Meter, Energy Meter, Water Meter, Gas Meter, Smart Meter, Clock. LCD technology is to fill the liquid crystal between two planes with narrow grooves. The grooves on these two planes are perpendicular to each other (intersecting at 90 degrees). If the molecules on one plane are arranged from north to south, the molecules on the other plane are arranged from east to west, and the molecules between the two planes are forced into a 90-degree twisted state.
16x1 (S) LCD Display Y/G Features:-

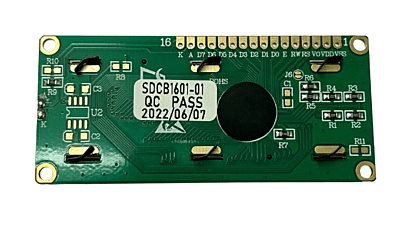

- SDCB1601-01 Series LCD
- Display Contents :16 * 1 Characters (5*8 dots )
- Driving Scheme : 1/16Duty; 1/5Bias
- Viewing Direction :6 0’ clock
- Driver IC :AIP31066
- Interface :Parallel
- Backlight :White/Yellow-Green
- Operating Temperature :-20 C－﹢70 C
- Storage Temperature :-30 C－﹢80 C
- RoHS Compliant
- Outline Dimensions : 80.00(W) x 36.00(L) x 13.00(H)(mm)
- Viewing Area : 64.50 (W) x 14.00(L)(mm)
- Active Area : 59.46 (W) x 5.96 (L)(mm)
- Character Size : 3.07 (W) x 5.96 (L)(mm)
- Character Pitch : 3.77 (W) x 5.96 (L)(mm)
- Dot Size : 0.55 (W) x 0.75 (L)(mm)
- Dot Pitch : 0.63 (W) x 0.83 (L)(mm)
