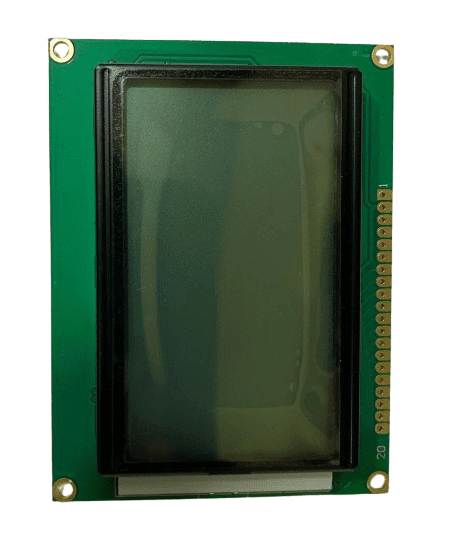

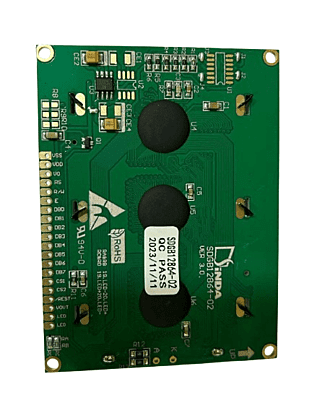

Sinda Display 128X64 (S) COB White Gray Backlight-LC-569-D
Non-returnable
₹570.00
SKU
LC-569-D SPQ
120 MOQ
1 Visible Manufacture Name
SINDA Visible Manufacturer’s code
SDGB12864-02 Weight (gm)
0.104kgStock Available
749 Choose Quantity
Product Details
Get the high-quality 128X64 (S) COB White Gray Backlight at the best price in India.
- SDGB12864-02 SERIES
- SDGB12864-02A STN-Blue Negative Transmissive Mode
- Viewing Direction : 6 O’clock
- Driving Scheme : 1/64Duty, 1/9 Bias
- Power Supply for logic : 3.3V
- Backlight Color : White
- Display Content : 128*64 Dots
- VLCD : 9.0V
- Operation temperature : -20℃ to +70℃
- Storage temperature : -30℃ to +80℃
128X64 (S) COB White Gray Backlight Specifications:-
- Module Size : 93.00(L)*70.00 (W)*12.50(H)mm
- Viewing Area : 72.00(L)mm*39.00 (W)mm
- Active Area : 66.52(L)mm*33.24(W)mm
- Dot Pitch : 0.52 (W)mm*0.52 (H)mm
- Dot Size : 0.48(W)mm*0.48 (H)mm
- Dot Gap : 0.04 mm
