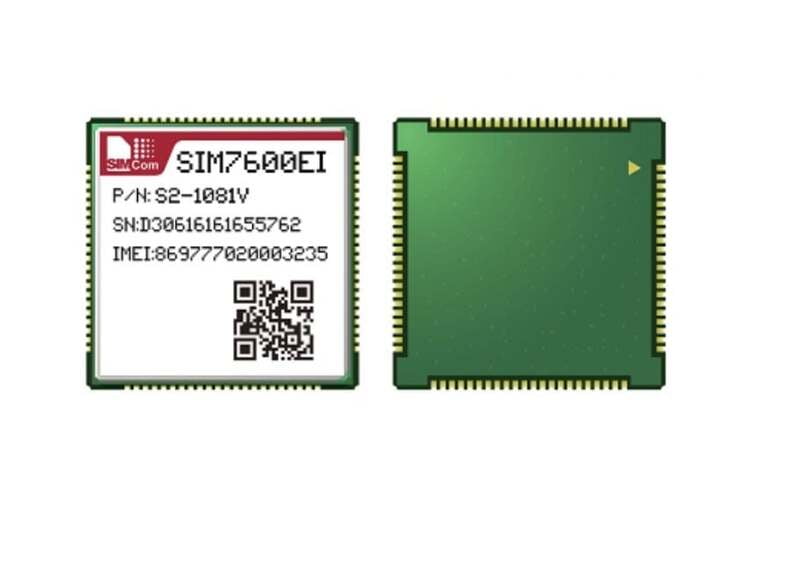

SIMCOM SIM7600EI - WI-369-D

SIMCOM Wireless Solution SIM7600EI - WI-369-D

Non-returnable
₹2,000.00 ₹2,200.00
SKU
WI-369-D
SPQ
300
MOQ
1
Visible Manufacture Name
SIMCom Wireless Solution
Visible Manufacturer’s code
SIM7600EI
Weight (gm)
0.01kg
Brand/MFR No
SIMCom/SIM7600EI
Quantity
Add to Cart
Product Details
The SIM7600 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. SIM7600EI supports maximum 10Mbps downlink rate and 5Mbps uplink rate. The SIM7600 series adopts LCC1 form factor and is compatible with SIM5320/SIM5360 series(UMTS/HSPA+ modules), and SIM7600/SIM7600-H series(LTE modules) , which enables smooth migration from 3G products to LTE products, and greatly facilitates more compatible product design for the customer needs.

The SIM7600 series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600-H series modules. Meanwhile the SIM7600 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.


Get the high-quality SIM7600EI Wireless Module at the best price in India.


SIM7600EI is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in LCC type which supports LTE CAT1 up to 10Mbps for downlink and 5Mbps for uplink data transfer. Designed in the compact and unified form factor, SIM7600EI is compatible with SIMCom HSPA+ SIM5360 module/LTE CAT3 SIM7100 and LTE CAT4 SIM7600E-H module, which allows customer to design their application once for different technology and benefit from great development time-saving.


SIM7600EI Features:-

Power supply: Single supply voltage 3.4~4.2V, recommend 3.8V.

Transmitting power:

  • GSM/GPRS power class:
  • --GSM850: 4 (2W)
  • --EGSM900: 4 (2W)
  • --DCS1800: 1 (1W)
  • --PCS1900: 1 (1W)

EDGE power class:

  • GSM850: E2 (0.5W)
  • EGSM900: E2 (0.5W)
  • DCS1800: E1 (0.4W)
  • PCS1900: E1 (0.4W)

Antenna :

  • GSM/UMTS/LTE main antenna
  • UMTS/LTE auxiliary antenna
  • GNSS antenna

GNSS :

  • GNSS engine (GPS, GLONASS and BD)
  • Protocol: NMEA

SMS :

  • MT, MO, CB, Text and PDU mode
  • SMS storage: USIM card or ME (default)

UART interface:

  • A full modem serial port by default
  • Baud rate: 300bps to 4Mbps (default: 115200bps)
  • Baud rate: 9600, 19200, 38400 ,57600 ,115200bps
  • Can be used as the AT commands or data stream channel
  • Support RTS/CTS hardware handshake
  • Multiplex ability according to GSM 07.10 Multiplexer Protocol

To know more about all latest Products of Wireless Module you can visit at  www.campuscomponent.com
