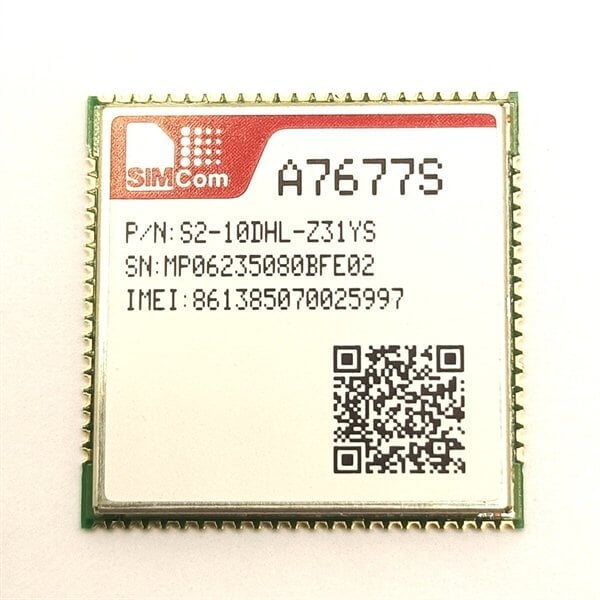

SIMCOM Wireless Solution A7677S-With GPS (8 +8MB) - WI-3509-D
₹768.00
SPQ
1000 MOQ
10 Visible Manufacture Name
SIMCOM Wireless Solution Visible Manufacturer’s code
A7677S-With GPS Weight (gm)
0.0075 Brand/MFR No
SIMCOM/A7677S-With GPSStock Available
39 Choose Quantity
Product Details
The size of the A7677S-With GPS is only 24*24* 2.4mm, which can almost meet the space size requirements of all M2M applications, such as metering, security, routing, wireless POS, mobile computing devices, PDA, tablet computers, etc. A7677S - LANS/LANV/ MANS/MANV module, a total of 130 pins, includes 80 LCC pins and 50 LGA pins.
Features of A7677S-With GPS :-
- Power Supply * 2(One main power supply, one GNSS backup power supply (Only modules that support GNSS functions are required))
- USB 2.0 Interface * 1
- Three UART ports, one full-function serial port, one DEBUG serial port, and one two-line serial port
- USIM interfaces (LANS/LANV supports the USIM2 dual-card interface)
- Multiple programmable general input and output interfaces (GPIO)
- Two general ADC interfaces
- Built-in VBAT ADC interface
- 4*4 matrix keyboard interface
- Analog audio MIC input interface
- Analog audio SPK output interface
- SPI Interface * 1
- Three LDO power output
- I2C Interface * 1
- USB_BOOT download boot interface * 1
- MMC interfaces * 1
- Network status indication interface
