SIMCOM Wireless Module A7672S-LASE (4G module) -WI-2382-D
Non-returnable
₹820.00
SPQ
400 MOQ
1 Visible Manufacture Name
SIMCOM wireless Solution Visible Manufacturer’s code
A7672S-LTE Cat 1 ModuleStock Available
500 Choose Quantity
Product Details

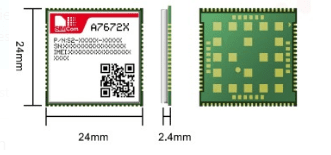

A7672S is the LTE Cat 1 module which supports wireless communication modes of LTE-FDD/GSM/GPRS/EDGE. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate. A7672S adopts LCC+LGA form factor and is compatible with SIM7000/SIM7070 series (NB/Cat M modules), and SIM800A/SIM800F(2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitates more compatible product design for the customer needs.
Get the high-quality A7672S(without GNSS) at the best price in India.
A7672S supports multiple built-in network protocols and drivers for main operation systems (USB driver for Windows, Linux and Android). The software functions, AT commands are compatible with the SIM800 series modules. Meanwhile A7672S integrates abundant industrial standard interfaces with powerful expansibility, such as UART, USB, I2C and GPIO, which makes it perfectly suitable for main IOT applications such as telematics, surveillance devices, industrial routers, and remote diagnostics etc.
A7672S(without GNSS) Key Benefits:-
- Compact size with abundant interfaces
- Suitable for LTE and GSM networks
- Abundant software functions: FOTA, LBS, SSL
- Form factor is compatible with the SIM7000/SIM7070 series
A7672S(without GNSS) Specifications:-
- Power Supply
- USB 2.0 Interface
- Three UART Interface, one full function serial port, one ordinary serial port and one debug serial port
- USIM Interface
- General ADC Interface
- VBAT ADC Interface
- 4*4 matrix keyboard
- Analog audio MIC input interface
- Analog audio SPK output interface
- SPI Interface
- LDO Power Output
- I2C Interface
- General input and output interfaces (GPIO)
- SPI LCD Interface
- SPI Camera Interface
- Antenna Interface
- USB_BOOT interface
- Network status indication interface
- Module operation status indication interface
A7672S(without GNSS) Features:-
Power supply VBAT : 3.4V ~4.2V, Recommended VBAT: 3.8V
Power saving : Current in sleep mode TBD
Transmitting power :
- GSM/GPRS power level: -- EGSM900: 4 (33dBm±2dB)
- -- DCS1800: 1 (30dBm±2dB)
- EDGE power level: -- EGSM900: E2 (27dBm±3dB)
- -- DCS1800 : E1 (26dBm+3dB/-4dB)
- LTE power level: 3 (23dBm±2.7dB)
Data Transmission Throughput :
GPRS Multiple time slot level 12
EDGE Multiple time slot level 12
TDD/FDD-LTE category 1 : 10 Mbps (DL),5 Mbps (UL)
Antenna :
- GSM/LTE antenna interface
- GNSS antenna interface(optional)
- Bluetooth antenna interface(optional)
SMS :
- MT, MO, CB, Text, PDU mode
- Short Message (SMS)storage device: USIM Card, CB does not
- support saving in SIM Card
