SIM800C IOT addon Board-WI-367-D

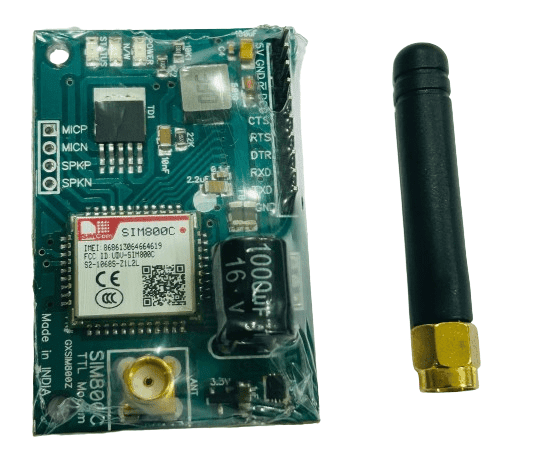

SIMCOM SIM800C IOT addon Board-WI-367-D

Non-returnable
₹550.00
SKU
WI-367-D
SPQ
1
MOQ
1
Visible Manufacture Name
SIMCom
Visible Manufacturer’s code
SIM800C IOT addon Board
Weight (gm)
0.05
Brand/MFR No
SIMCOM/SIM800C IOT addon Board
Quantity
Add to Cart
Product Details

Get the high-quality SIM800C IOT addon Board at the best price in India.

Sim800C GSM TTL modem/IOT Addon Board can deliver 85.6kbps data transfer rate, It is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas working on 2G network coverage. SIM800C GSM Modem TTL is an versatile modem for GSM applications like data and SMS which can be easily interfaced with Arduino and other microcontrollers with the following specifications. You can test various features of the SIM800C, such as sending SMS, making calls, and connecting to the internet, by sending the appropriate AT commands and parsing the responses.

Features of SIM800C IOT addon Board:-
  • Power Supply: Required Voltage 5V DC
  • Minimum Required Current: 0.5A (Patented Technology for low current consumption)
  • Communication Type: TTL, (onboard TTL Level Converter for 3.3V & 5V microcontroller interface with easy Jumper setting to select between 5V and 3.3V TTL Level shifter).
  • Baud Rate: 9600 (Configurable through AT Commands)
  • Form Factor: 56mm x 36.5mm
  • Battery powered: No (Optional)
  • Sim Slot: Nano Sim on the back side of the board.
  • Network LED: Blinks 1Hz if no network, Blinks 3Hz on the network

Explore all the Latest Products of SIMCOM GSM/GPS Module
