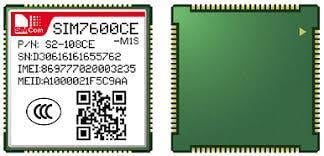

SIMCOM SIM7600CE-M1S With GPS - WI-1641
The SIM7600 series integrates multiple satellite high accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function, AT commands are compatible with SIM7500/SIM7600-H series modules. Meanwhile the SIM7600 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Get the high-quality SIM800CE-M1S With GPS at the best price in India.
Power supply Single supply voltage : 3.4~4.2V, recommend 3.8V.
Power saving Current in sleep mode : <5mA
Transmitting power :
GSM/GPRS power class:
- GSM850: 4 (2W)
- EGSM900: 4 (2W)
- DCS1800: 1 (1W)
- PCS1900: 1 (1W)
EDGE power class :
- EGSM900: E2 (0.5W)
- DCS1800: E1 (0.4W)
- PCS1900: E1 (0.4W)
Data Transmission Throughput :
- GPRS multi-slot class 12
- EDGE multi-slot class 12
- UMTS R99 speed: 384 kbps DL/UL
- HSPA+: 5.76 Mbps(UL), 42 Mbps(DL)
- HSDPA/HSUPA: 2.2 Mbps(UL), 2.8 Mbps(DL)
- LTE CAT 1: 10 Mbps(DL) 5 Mbps(UL)
- LTE-FDD CAT4 :150 Mbps (DL),50 Mbps (UL)
- LTE-TDD CAT4 :130 Mbps (DL),35 Mbps (UL)
- GSM/UMTS/LTE main antenna.
- UMTS/LTE auxiliary antenna
- GNSS antenna
- GNSS engine (GPS, GLONASS and BD)
- MT, MO, CB, Text and PDU mode
- SMS storage: USIM card or ME (default)
