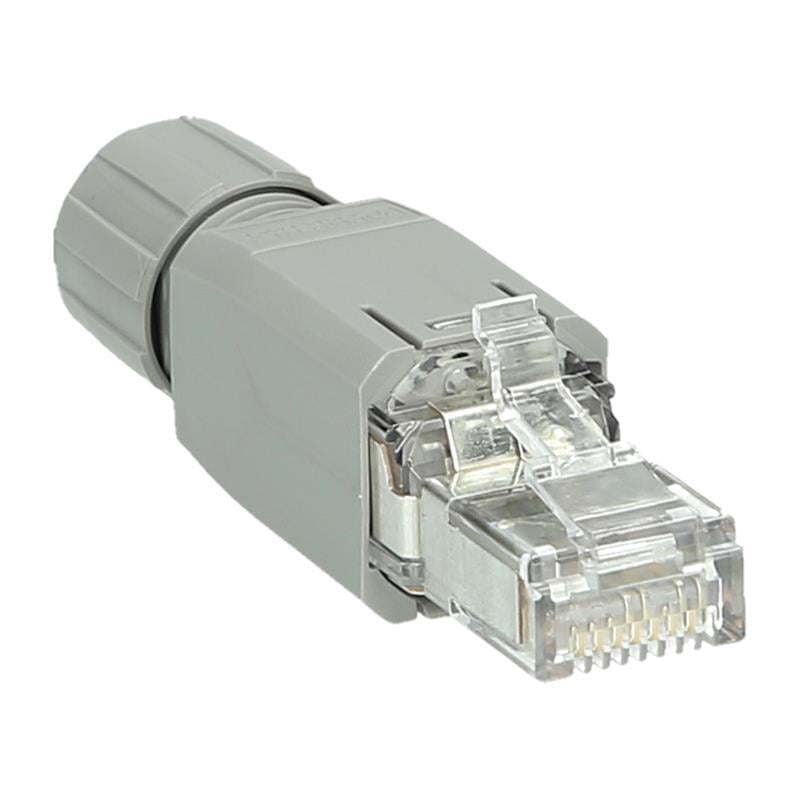

RJ45 connector - VS-PN-RJ45-5-Q/IP20 - CO-2499-D
Out of stock
₹2,100.00
SPQ
1 MOQ
1 Visible Manufacture Name
Phoenix Contact Visible Manufacturer’s code
VS-PN-RJ45-5-Q/IP20-1658435 Weight (gm)
0.00784 Brand/MFR No
Phoenix Contact/VS-PN-RJ45-5-Q/IP20/1658435 Product Details
RJ45 connector, degree of protection: IP20, number of positions: 4, 100 Mbps, CAT5 (IEC 11801:2002), material: PA, connection method: IDC fast connection, cable outlet: straight, color: traffic grey A RAL 7042, PROFINET
RJ45 connector - VS-PN-RJ45-5-Q/IP20 Specifications:-
- Rated voltage (III/3) 72 V (DC)
- Rated surge voltage 330 kV
- Rated current 1.75 A
- Frequency range 100 MHz
- Insulation resistance > 500 MΩ (100 V)
- Nominal voltage UN 48 V
- Nominal current IN 1.75 A
- Contact resistance < 0.001 Ω (Wire – IDC) < 0.005 Ω (Litz wires – IDC)
RJ45 connector - VS-PN-RJ45-5-Q/IP20 Properties:-
- Type RJ45
- Product type Data plug
- Number of positions 4
- Connection profile RJ45
- Type RJ45
- Locking type Locking clips
To know more about all latest Products of RJ45 Connector you can visit at www.campuscomponent.com
