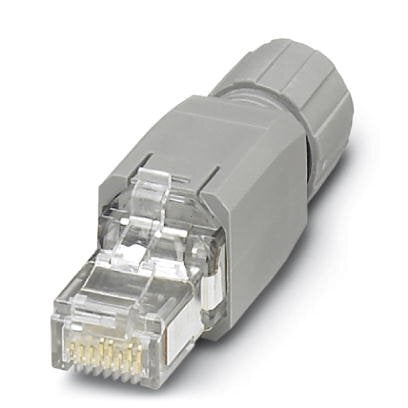

Phoenix Contact -1656725 -RJ45 connector - VS-08-RJ45-5-Q/IP20 - CO-2500-D
Out of stock
₹1,200.00
SPQ
1 MOQ
1 Visible Manufacture Name
Phoenix Contact Visible Manufacturer’s code
VS-08-RJ45-5-Q/IP20-1656725 Weight (gm)
0.00894 Brand/MFR No
Phoenix Contact/VS-08-RJ45-5-Q/IP20 - 1656725 Product Details
Get the high-quality RJ45 connector - VS-08-RJ45-5-Q/IP20 at the best price in India.
RJ45 connector, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5 (IEC 11801:2002), material: PA, connection method: IDC fast connection, connection cross section: AWG 26- 23, cable outlet: straight, color: traffic grey A RAL 7042, Ethernet.
RJ45 connector - VS-08-RJ45-5-Q/IP20 Product Properties:-
- Type:- RJ45, IP20
- Number of positions:- 8
- Connection profile:- RJ45
- Type:- RJ45
- Locking type:- Locking clips
- Insulation characteristics:-
- Overvoltage category:- I
- Degree of pollution:- 1
RJ45 connector - VS-08-RJ45-5-Q/IP20 Electrical Properties:-
- Rated voltage (III/3):- 72 V (DC)
- Rated surge voltage:- 330 kV
- Rated current:- 1.75 A
- Frequency range to:- 100 MHz
- Nominal voltage UN:- 48 V
- Nominal current IN:- 1.75 A
- Contact resistance:- 0.001 Ω (Wire – IDC), 0.005 Ω (Litz wires – IDC)
