HOPERF RFM6601W-868S2R - WI-3333-D
SPQ: 100, MOQ:1
₹608.00
SPQ
100 MOQ
1 Visible Manufacture Name
HopeRF Visible Manufacturer’s code
RFM6601W-868S2R Weight (gm)
0.004 Brand/MFR No
HOPERF/RFM6601W-868S2R Choose Quantity
Product Details
Get the high-quality HOPERF RFM6601W-868S2R at the best price in India.

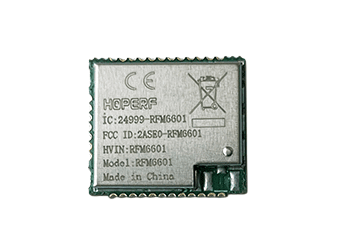

The RFM6601 module includes a general LoRa wireless communication SoC, integrated with a RF transceiver and a 32-bit RISC MCU. The MCU uses ARM Cortex M4, with 48 MHz operation frequency. The RF Transceiver has continuous frequency coverage from 150 MHz to 960 MHz. The RFM6601 Module provides ultra-long range and ultra-low power communication for LoRa application. RFM6601 can achieve a high sensitivity to -138 dBm and the maximum transmit power is up to +22 dBm. This makes the module suitable to be used in long range LoRa and have high efficiency.
RFM6601W-868S2R Features:-
- Working Voltage: 1.7V - 3.7V
- Working Frequency: 433.92 MHz (for China), 470 MHz (for China), 868 MHz (for Europe), 915 MHz (for USA/Canada)
- Receiving Sensitivity: -138 dBm @SF=12, BW="125KHz
- Tx Current: 108mA @+22dbm(3.3V), 433.92 MHz (for China)
- Rx Current: 10mA @433.92 MHz (for China)
RFM6601W-868S2R Applications:-
- Smart meters
- Supply chain and logistics
- Building automation
- Agricultural sensors
- Smart cities
- Retail store sensors
- Asset tracking
- Street lights
- Parking sensors
- Environmental sensors
- Healthcare
- Safety and security sensors
- Remote control applications
