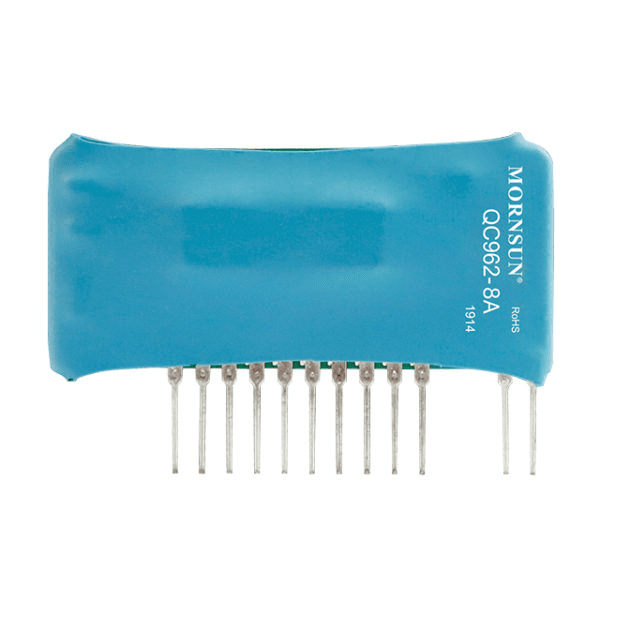

QC962-8A-IC-1244-D
₹350.00
SPQ
1 MOQ
1 Visible Manufacture Name
MORNSUN Visible Manufacturer’s code
MORNSUN Weight (gm)
0.012Stock Available
928 Choose Quantity
Product Details
QC962 is a hybrid integrated IGBT driver designed for driving N-channel IGBT modules in any gate amplifier application. The device provides the required electricalisolation between input and output with the opto-coupler. Short circuit protection is provided by a built-in desaturation detector. A fault signal is provided if the short circuit protection is activate.
Get the high-quality QC962 IGBT Gate Driver at the best price in India.
QC962 IGBT Gate Driver Features:-
- Built in high CMRR opto-coupler (CMR: Typical: 30kV/μs, Min.:15kV/μs)
- Two supply drive topology
- TTL compatible input interface
- Electrical isolation voltage between input and output with opto-couplers (Viso=3750VRMS/min)
- Built in short circuit protection circuit with in for fault output
- Soft IGBT turn-off and protection circuit time reset
- Controlled time detected short circuit
- Switching frequency up to 20kHz
- Pin and characteristic are compatible with M57962AL
QC962 IGBT Gate Driver Applications:-
- General-purpose Inverter
- AC Servo Systems
- Unint erruptable Power Supplies(UPS)
- Welding Machines
