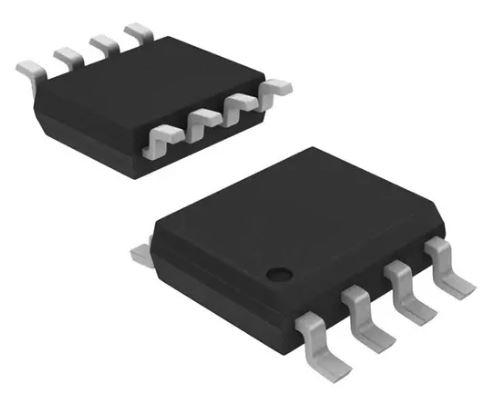

Puya Semiconductor SPI Flash Memory PY25Q80HB-SUH-IR - ME-3998-D
Out of stock
- Part Number Description- PY25Q80HB-SUH-IR
- Supply Voltage: 2.3 to 3.6 V
- Temperature Range: -40C to 85C
- Interface: SPI (Single, Dual, Quad IO)
- SPI Modes Supported: Mode 0, Mode 3
- Page Program Size: 256 Bytes
- Sector Erase Size: 4KB
- Block Erase Sizes: 32KB / 64KB
- Full Chip Erase: Supported
- Security Registers: 3 × 512 Bytes (OTP)
- Program/Erase Cycles: 100,000 Cycles
₹13.25
SPQ
4000 MOQ
1 Visible Manufacture Name
Puya Semiconductor Visible Manufacturer’s code
PY25Q80HB-SUH-IR Brand/MFR No
Puya Semiconductor/PY25Q80HB-SUH-IR Product Details
The PY25Q80HB is a serial interface Flash memory device designed for use in various high-volume consumer-based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution. The flexible erase architecture of the device, with its sector erase granularity it is ideal for data storage as well, eliminating the need for additional data storage devices. The device also contains an additional 3*512-byte security register with an OTP lock (One-Time Programmable), which can be used for purposes such as unique device serialization, system-level Electronic Serial Number (ESN) storage, locked key storage, etc. Specifically designed for use in many different systems, the device supports read, program, and erase operations with a wide supply voltage range of 2.3V to 3.6V. No separate voltage is required for programming and erasing.
Get the high-quality SPI Flash Memory PY25Q80HB-SUH-IR at the best price in India.
SPI Flash Memory PY25Q80HB-SUH-IR Features:-
- Single 2.3 to 3.6V supply
- Serial Peripheral Interface (SPI) Compatible: Mode 0 and Mode 3
- Single, Dual, Quad SPI, QPI - Standard SPI: SCLK, CS#, SI, SO, WP#, HOLD# - Dual SPI: SCLK, CS#, IO0, IO1, WP#, HOLD# - Quad SPI: SCLK, CS#, IO0, IO1, IO2, IO3 - QPI: SCLK, CS#, IO0, IO1, IO2, IO3
- Flexible Architecture for Code and Data Storage - Uniform 256-byte Page Program - Uniform 4K-byte Sector Erase - Uniform 32K/64K-byte Block Erase - Full Chip Erase
- Hardware Controlled Locking of Protected Sectors by WP# Pin
