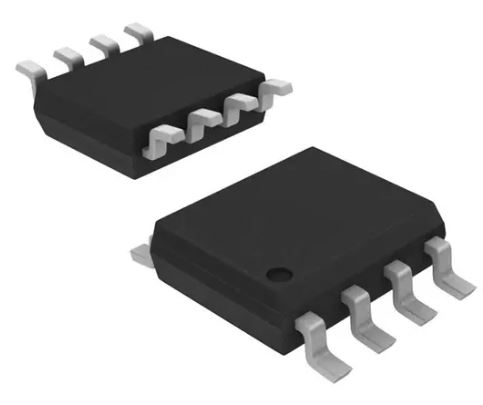

Puya Semiconductor Serial Multi I/O Flash Memory P25Q21H-SSH-IR - ME-3999-D
₹6.75
Out of stock
SPQ: 4000, MOQ:1, Product Package: SOP-8
Product Details
The P25Q21H/11H/06H is a serial interface Flash memory device designed for use in various high-volume consumer-based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution. The device's flexible erase architecture, with its page erase granularity, makes it ideal for data storage as well, eliminating the need for additional data storage devices. The device also contains an additional 3*512-byte security register with an OTP lock (One-Time Programmable), which can be used for purposes such as unique device serialization, system-level Electronic Serial Number (ESN) storage, locked key storage, etc. Specifically designed for use in many different systems, the device supports read, program, and erase operations with a wide supply voltage range of 2.3V to 3.6V. No separate voltage is required for programming and erasing.
Get the high-quality Flash Memory P25Q21H-SSH-IR at the best price in India.
Serial Multi I/O Flash Memory P25Q21H-SSH-IR Features:-
- Single 2.3V to 3.60V supply
- Industrial Temperature Range: -40C to 85C
- Serial Peripheral Interface (SPI) Compatible: Mode 0 and Mode 3
- Single, Dual, and Quad IO mode - 2M/1M/512K x 1 bit - 1M/512K/256K x 2 bits - 512K/256K/128K x 4 bits
- Flexible Architecture for Code and Data Storage - Uniform 256-byte Page Program - Uniform 256-byte Page Erase - Uniform 4K-byte Sector Erase - Uniform 32K/64K-byte Block Erase - Full Chip Erase
- Hardware Controlled Locking of Protected Sectors by WP# Pin
