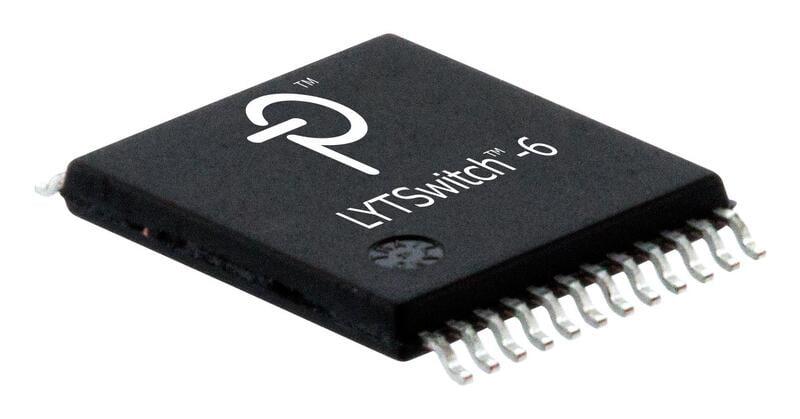

Power Integrations LYT6068C - IC-371-D
Non-returnable
Out of stock
₹90.00
SKU
IC-371-D SPQ
1 MOQ
1 Visible Manufacture Name
Power Integrations Visible Manufacturer’s code
LYT6068C-TL Weight (gm)
0.05 Brand/MFR No
Power Integrations/LYT6068C-TL Product Details
Get the high-quality Power Integrations LYT6068C at the best price in India.
The LYT Switch™-6 series family of ICs dramatically simplifies the development and manufacturing of off-line LED drivers, particularly those in compact enclosures or with high efficiency requirements. The LYTSwitch-6 architecture is revolutionary in that the devices incorporate both primary and secondary controllers, with sense elements and a safety-rated feedback mechanism into a single IC. Close component proximity and innovative use of the integrated communication link, Flux Link, permit accurate control of a secondary side synchronous rectification MOSFET with Quasi-Resonant switching of primary integrated high-voltage MOSFET to maintain high efficiency across the entire load range.
- Highly Integrated, Compact Footprint
- Up to 94% efficiency across full load range
- Incorporates a multi-mode Quasi-Resonant (QR) / CCM / DCM fly back controller, 650 V or 725 V MOSFET, secondary-side control and synchronous rectification driver
- Integrated Flux Link™, HIPOT-isolated, feedback link
- Exceptional CV/CC accuracy, independent of transformer design or external components
- Adjustable accurate output current sense using external sense resistor EcoSmart™ – Energy Efficient
- Less than 15 mW no-load including line sense (without PF front end)
- Designs using LYTSwitch-6 easily meet Energy Star and all global lighting energy efficiency regulations
- Low heat dissipation Advanced Protection / Safety Features
- Input line OV with auto-restart
- Output fault OVP/UVP with auto-restart
- Open SR FET gate detection
- Input voltage monitor with accurate brown-in
- Thermal foldback ensures that power continues to be delivered (lower level) at elevated temperatures Full Safety and Regulatory Compliance
- Reinforced insulation
- Isolation voltage >4000 VAC
- 100% production HIPOT compliance testing
- UL1577 and TUV (EN60950) safety approved Green Package
- Halogen free and RoHS compliant Applications
- Isolated off-line LED driver
- Smart LED lighting
- High-voltage fly back post regulator
