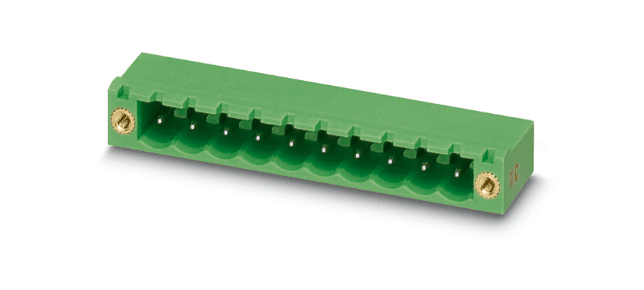

Phoenix Contact PCB header - MSTB 2,5/ 8-GF-5,08 - CO-2880-D
₹200.00
SPQ
100 MOQ
1 Visible Manufacture Name
Phoenix Contact Visible Manufacturer’s code
MSTB 2,5/ 8-GF-5,08 - 1776566 Weight (gm)
0.0005Stock Available
47 Choose Quantity
Product Details
PCB header - MSTB 2,5/ 8-GF-5,08 Features and Specifications:-
- nominal cross section: 2.5 mm2
- color: green
- nominal current: 16 A (see derating curve)
- rated voltage (III/2): 320 V
- contact surface: Tin
- type of contact: Male connector
- number of potentials: 8
- number of rows: 1
- number of positions: 8
- number of connections: 8, product range: MSTB 2,5 HC/..-GF, pitch: 5.08 mm, pin layout: Linear pinning
PCB header - MSTB 2,5/ 8-GF-5,08 Features and Advantages:-
- Well-known mounting principle allows worldwide use
- Screwable flange for superior mechanical stability
- Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
