Phoenix Contact -1766246 - GMSTBA 2,5/ 3-G-7,62 - CO-2878-D
Out of stock
₹50.00
SPQ
250 MOQ
10 Visible Manufacture Name
Phoenix Contact Visible Manufacturer’s code
GMSTBA 2,5/ 3-G-7,62 - 1766246 Weight (gm)
0.0015kg Brand/MFR No
Phoenix Contact/GMSTBA 2,5/ 3-G-7,62 - 1766246 Product Details

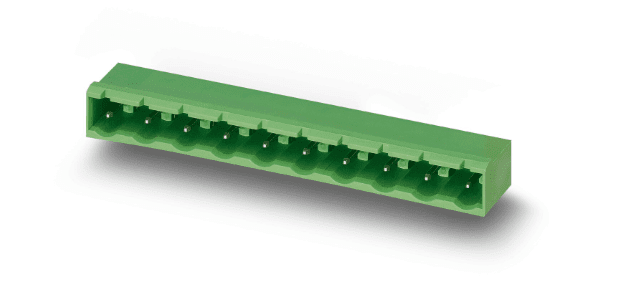

PCB header - GMSTBA 2,5/ 3-G-7,62 Specifications:-
- nominal cross section: 2.5 mm2
- color: green
- nominal current: 12 A
- rated voltage (III/2): 630 V
- contact surface: Tin
- type of contact: Male connector
- number of potentials: 3
- number of rows: 1
- number of positions: 3
- number of connections: 3
- product range: GMSTBA 2,5/..-G
- pitch: 7.62 mm
PCB header - GMSTBA 2,5/ 3-G-7,62 Advantages:-
- Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
- Well-known mounting principle allows worldwide use
- Larger pitch for increased voltage requirements
- Closed contour for optimum stability of the plug-in connection
- Plug-in direction parallel to the PCB
