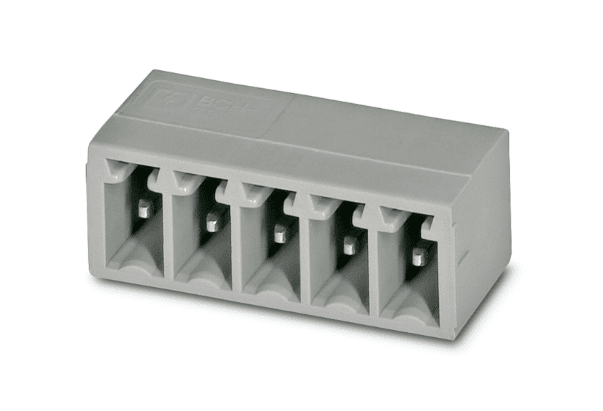

Phoenix Contact PCB header - BCH-381H- 2 GN - CO-2876-D
Out of stock
₹25.00
SPQ
100 MOQ
10 Visible Manufacture Name
Phoenix Contact Visible Manufacturer’s code
BCH-381H- 2 GN-5444262 Weight (gm)
0.0007kg Brand/MFR No
Phoenix Contact/BCH-381H- 2 G-5444262 Product Details
Phoenix Contact PCB header - BCH-381H- 2 GN Features:-
- nominal cross section: 1.5 mm2
- color: pastel green
- nominal current: 8 A
- rated voltage (III/2): 160 V
- contact surface: Tin
- type of contact: Male connector
- number of potentials: 2
- number of rows: 1
- number of positions: 2
- number of connections: 2
- pitch: 3.81 mm
Phoenix Contact PCB header - BCH-381H- 2 GN Specifications:-
- Nominal current IN 8 A
- Nominal voltage UN 160 V
- Pollution degree 3
- Contact resistance 1.4 mΩ
- Rated voltage : 160 V
- Rated surge voltage : 2.5 kV
- Rated voltage : 160 V
- Rated surge voltage : 2.5 kV
