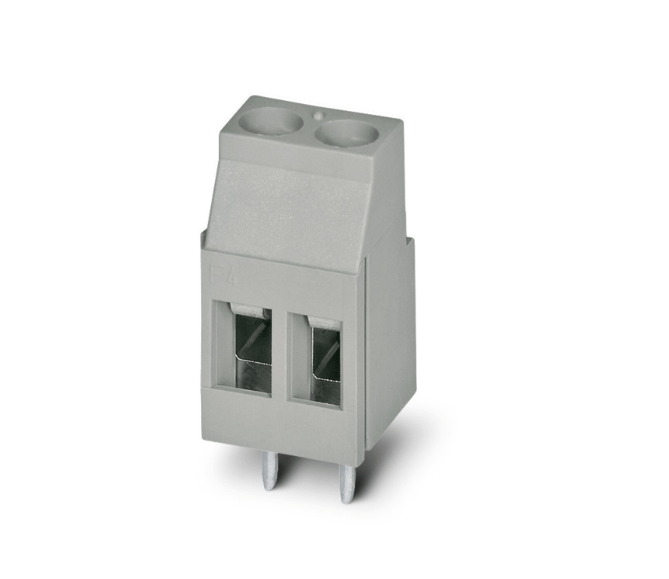

Phoenix Contact-5442918 -PCB Terminal Block BC-508X18-2GN - TB-2837-D
₹45.00
SPQ
100 MOQ
10 Visible Manufacture Name
Phoenix Contact Visible Manufacturer’s code
BC-508X18-2GN-5442918 Weight (gm)
0.0047kg Brand/MFR No
Phoenix Contact/BC-508X18-2GN-5442918Stock Available
37198 Choose Quantity
Product Details
PCB Terminal Block BC-508X18-2GN Specifications:-
- Nominal current: 24
- A rated voltage (III/2): 400 V
- nominal cross section: 2.5 mm2
- number of potentials: 2
- number of rows: 1
- number of positions per row: 2
- product range: BC-X18, pitch: 5.08 mm
- connection method: Screw connection with tension sleeve
- mounting: Wave soldering
- conductor/PCB connection direction: 0 °
- color: pastel green, Pin layout: Linear pinning
- Solder pin [P]: 3.5 mm, number of solder pins per potential: 1
- type of packaging: packed in cardboard
PCB Terminal Block BC-508X18-2GN Properties:-
- Type : PC terminal block can be aligned
- Product type : Printed circuit board terminal
- Number of positions : 2
- Pitch : 5.08 mm
- Number of connections : 2
- Number of rows : 1
- Number of potentials : 2
- Pin layout : Linear pinning
