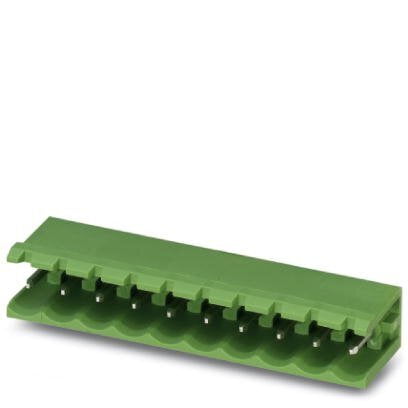

Phoenix Contact-1759020 -PCB header - MSTB 2,5/ 3-G-5,08 - CO-2531-D
Out of stock
₹35.00
SPQ
250 MOQ
1 Visible Manufacture Name
Phoenix Contact Visible Manufacturer’s code
MSTB 2,5/ 3-G-5,08 - 1759020 Weight (gm)
0.001kg Brand/MFR No
Phoenix Contact/MSTB 2,5/ 3-G-5,08 - 1759020 Product Details
PCB headers, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 3, Number of rows: 1, Number of positions per row: 3, number of connections: 3, product range: MSTB 2,5/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, plug-in system: CLASSIC COMBICON, Pin connector pattern alignment: Standard, Locking: without, mounting: without, type of packaging: packed in cardboard.
Get the high-quality PCB header - MSTB 2,5/ 3-G-5,08 at the best price in India.
PCB header - MSTB 2,5/ 3-G-5,08 Properties:-
| Type | Standard |
| Number of positions | 3 |
| Number of connections | 3 |
| Number of rows | 1 |
| Connector system | CLASSIC COMBICON |
| Mounting flange | without |
| Number of potentials | 3 |
| Pin layout | Linear pinning |
PCB header - MSTB 2,5/ 3-G-5,08 Electrical Properties:-
| Maximum load current | 12 A |
| Rated voltage (II/2) | 400 V |
| Rated voltage (III/2) | 320 V |
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Nominal voltage UN | 250 V |
| Nominal current IN | 12 A |
| Nominal current IN | 12 A |
To know more about all latest Products of Pin Header Connector you can visit at www.campuscomponent.com
