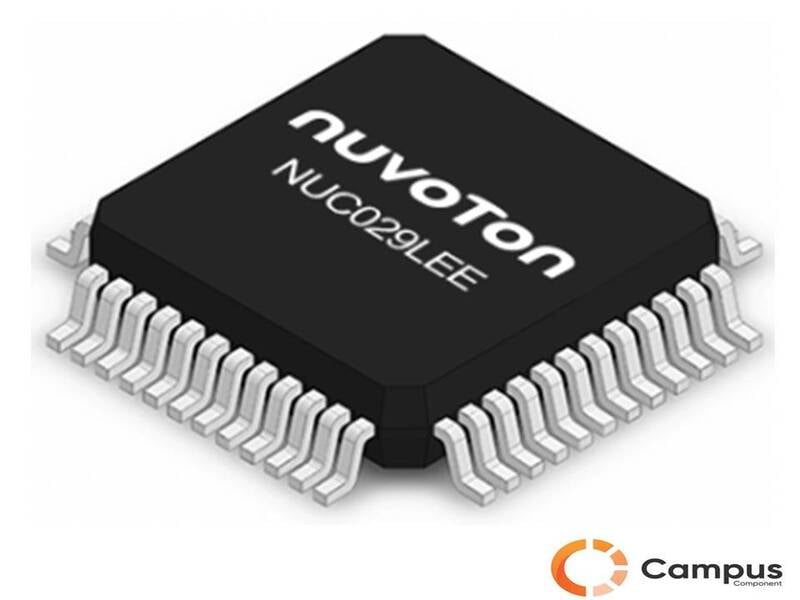

Nuvoton Technology Corporation NUC029LEE - DE-529-D
Non-returnable
₹110.00
Out of stock
Product Details
The NuMicro® NUC029LEE/NUC029SEE of NUC029 series is embedded with the Arm® Cortex® - M0 core running up to 72 MHz and features 128 Kbytes Flash, 16 Kbytes SRAM, and 8 Kbytes loader ROM for the ISP. It is also equipped with plenty of peripheral devices, such as Timers, Watchdog Timer, Window Watchdog Timer, RTC, PDMA with CRC calculation unit, UART, SPI, I 2 C, PWM Timer, GPIO, LIN, CAN, USB 2.0 FS Device, 12-bit ADC, Low Voltage Reset Controller and Brown-out Detector.
M0 core
- Runs up to 72 MHz
- One 24-bit system timer
- Supports low power sleep mode
- Single-cycle 32-bit hardware multiplier
- NVIC for the 32 interrupt inputs, each with 4-levels of priority
- Serial Wire Debug supports with 2 watchpoints/4 breakpoints
Flash Memory
- 128 Kbytes Flash for program code
- 8 Kbytes Flash for ISP loader
- Supports In-System-Program (ISP) and In-Application-Program (IAP) application code
- update
- 512 byte page erase for Flash
- Configurable Data Flash address and size for 128 Kbytes system
- Supports 2-wired ICP update through SWD/ICE interface
SRAM Memory
- 16 Kbytes embedded SRAM
- Supports PDMA mode
Attachment :
