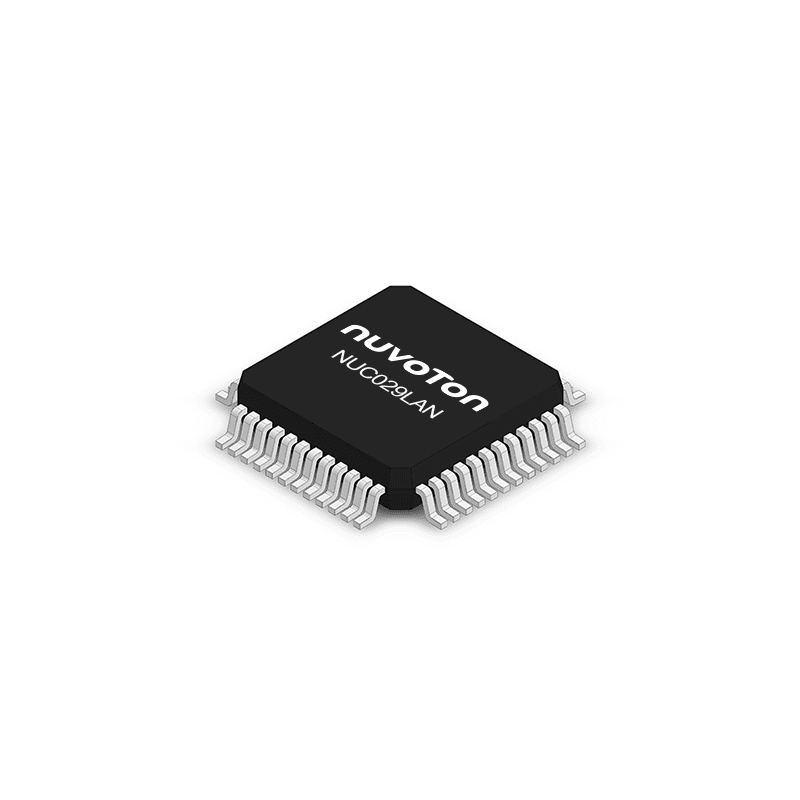

Nuvoton Technology Corporation NUC029LAN - DE-1192-D
Non-returnable
₹75.00
Product Details
The NuMicro™ NUC029 series 32-bit microcontroller is embedded with ARM® Cortex® -M0 core for industrial control and applications which need rich communication interfaces or require high performance, high integration, and low cost. The Cortex® -M0 is the newest ARM® embedded processor with 32-bit performance at a cost equivalent to the traditional 8-bit microcontroller.
Get the high-quality Nuvoton NUC029LAN at the best price in India.
The NuMicro™ NUC029 series includes there part numbers: NUC029LAN, NUC029TAN and NUC029FAE. The NUC029LAN/NUC029TAN can run up to 50 MHz and operate at 2.5V ~ 5.5V, -40℃ ~ 85℃, and the NUC029FAE can run up to 24 MHz and operate at 2.5V ~ 5.5V, -40℃ ~ 105℃. Therefore, the NUC029 series can afford to support a variety of industrial control and applications which need high CPU performance.
Nuvoton NUC029LAN Target Application:-
- LED Control
- Industrial Control
- Motor Control
Nuvoton NUC029LAN Key Features:-
Operating Characteristics:
- Voltage range: 2.5 V ~ 5.5 V
- Temperature range: - 40°C ~ +85°C
Core:
- Arm® Cortex®-M0 processor
- Max frequency of 50 MHz
Memories:
- 64 KB Flash for program memory
- Provide 4 KB SRAM
- 4 KB ISP ROM
- Support ISP ( In-System Programming )
- Support ICP ( In-Circuit Programming )
- Support IAP ( In-Application-Program )
Clocks:
- 4 ~ 24 MHz external crystal oscillator
- Internal 22.1184 MHz oscillator
- 10 kHz low-power oscillator for Watchdog Timer and wake-up in Sleep
PWM:
- Up to 8 channel 16-bit PWM outputs
- Support Capture interrupt
ADC:
- Up to 8 channels
- 12-bit resolution
- Up to 760 kSPS
Connectivity:
- Up to 2 SPI
- Up to 2 I²C
- Up to 2 UART
- 16/8-bits EBI interface
To know more about all latest Products of Microcontroller and Development Boards you can visit at www.campuscomponent.com
