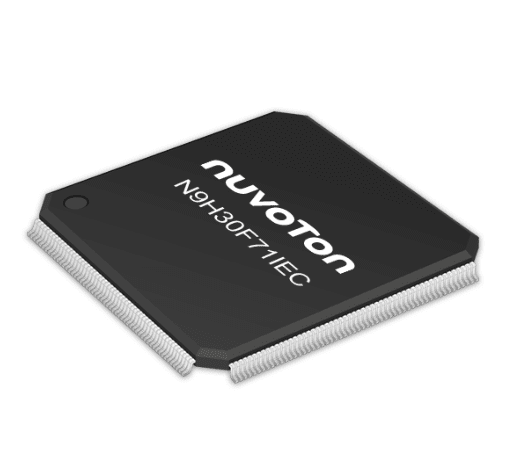

Nuvoton Technology Corporation N9H30F71IEC - IC-3070-D
Non-returnable
₹700.00 ₹750.00
SPQ
1 MOQ
1 Visible Manufacture Name
Nuvoton Technology Corporation Visible Manufacturer’s code
N9H30F71IEC Weight (gm)
0.0012Stock Available
7 Choose Quantity
Product Details
The N9H30 series targeted for general purpose 32-bit microcontroller embeds an outstanding CPU core ARM926EJ-S, runs up to 300 MHz, with 16 KB I-cache, 16 KB D-cache and MMU, 56KB embedded SRAM and 16 KB IBR (Internal Boot ROM) for booting from USB, NAND and SPI FLASH. The N9H30 series integrates USB 2.0 HS HOST/Device controller with HS transceiver embedded, TFT type LCD controller, 2D graphics engine, I2S I/F controller, SD/MMC/NAND FLASH controller, GDMA and 8 channels 12-bit ADC controller with resistance touch screen functionality. It also integrates UART, SPI/MICROWIRE, I2C, LIN, PWM, Timer, WDT/Windowed-WDT, GPIO, Keypad, Smart Card I/F, 32.768 KHz XTL and RTC (Real Time Clock).
Get the high-quality Nuvoton Microcontrollers at the best price in India.
Features and Specifications of N9H30F71IEC:
Core:
- ARM® ARM926EJ-STM processor core runs up to 300 MHz
- Support 16 KB instruction cache and 16 KB data cache
- Support MMU
- Support JTAG Debug interface
DDR SDRAM Controller:
- Support LVDDR and DDR2 SDRAM
- Clock speed up to 150 MHz
- Support 16-bit data bus width
- Memory size depended on embedded SDRAM configuration by different part number.
Embedded SRAM and ROM:
- Support 56K bytes embedded SRAM
- Support 16K bytes Internal Boot ROM (IBR)
- Support up to four booting modes
- Boot from USB
- Boot from eMMC
- Boot from NAND Flash
- Boot from SPI Flash
Clock Control:
- Support two PLLs, up to 500 MHz, for high performance system operation
- External 12 MHz high speed crystal input for precise timing operation
- External 32.768 kHz low speed crystal input for RTC function and low speed clock source
