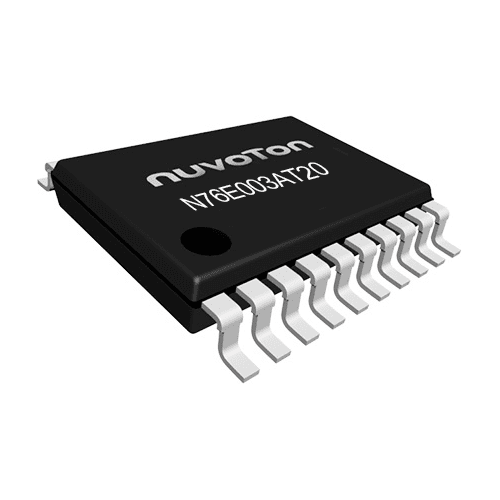

Nuvoton Technology Corporation N76E003AT20 - DE-3797-D
₹50.00
Out of stock
SPQ: 2500, MOQ:1, Product Package: TSSOP20
Product Details
The N76E003 is an embedded flash type, 8-bit high-performance 1T 8051-based microcontroller. The instruction set is fully compatible with the standard 80C51 and is performance-enhanced. The N76E003 contains up to 18K Bytes of main Flash called APROM, in which the contents of the User Code reside. The N76E003 Flash supports the In-Application-Programming (IAP) function, enabling updates to on-chip firmware. IAP also makes it possible to configure any block of the User Code array to be used as non-volatile data storage, written by IAP and read by IAP or MOVC instruction. There is an additional Flash called LDROM, in which the Boot Code normally resides for carrying out In-System-Programming (ISP). The LDROM size is configurable with a maximum of 4K Bytes.
Get the high-quality Nuvoton N76E003AT20 at the best price in India.
Nuvoton N76E003AT20 Specification:-
CPU:
- Fully static design 8-bit high-performance 1T 8051-based CMOS microcontroller.
- The instruction set is fully compatible with MCS-51.
- 4-priority-level interrupts capability.
- Dual Data Pointers (DPTRs).
Operating:
- Wide supply voltage from 2.4V to 5.5V.
- Wide operating frequency up to 16 MHz.
- Industrial temperature grade: -40℃ to +105℃.
Memory:
- Up to 18K Bytes of APROM for User Code.
- Configurable 4K/3K/2K/1K/0K Bytes of LDROM provides flexibility to user-developed Boot Code.
- Flash Memory accumulated with pages of 128 Bytes each.
- Built-in In-Application-Programmable (IAP). – Code lock for security. – 256 Bytes on-chip RAM.
